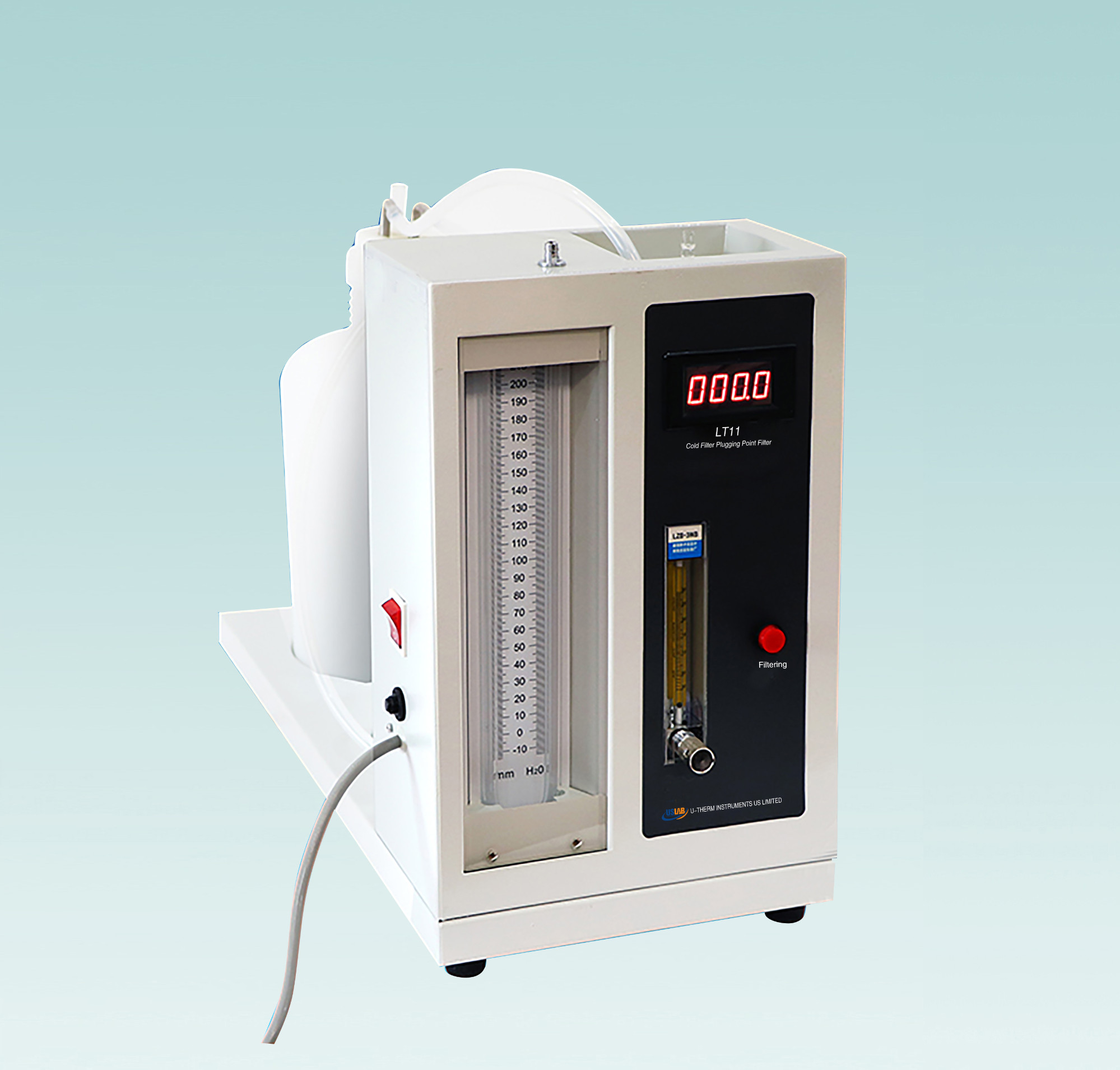

Cold Filter Plugging Point Filter

Model ID: LT11

Among other devices, the determination of the distillate fuel, including the cold filter point of fuels containing fluidity improvers or other additives for diesel engines and domestic heating devices, can be used to evaluate the minimum temperature of normal fuel flow in the fuel system.

I. Main technical features
1. The instrument adopts the overall structural form, the instrument structure is novel, small and beautiful; it is equipped with a suction control flow meter, which can effectively control and display the suction flow; the special suction filtration structure design can ensure the success of the suction filtration test.

2. A buzzer will sound after the instrument has finished filtering.

3. The digital display technology is adopted for convenient data setting. The timing display is conspicuous, and the timing stops automatically when the time is up.

4. This instrument is matched with the low temperature test instrument LT1510G for petroleum products, which can realize the cold filtration point test of petroleum products.

II. Main technical specifications
1. Power supply:  AC 220V±10%, 50 Hz
2. Pumping pressure:  U-tube differential pressure meter 1961 Pa (200 mm H2O±1mm H2O)
3. Test cup:  Standard pipette (with 45ml scale)
4. Filter assembly:  It is made of brass; Size of hole on the filter sieve is 45 μm (330 meshes)
5. Working environment: (1) Ambient temperature: 15
35 (2) Relative humidity: ≤85%
6. Maximum power consumption:  150 W
7. Dimension:  550mm × 250mm × 400mm (length × width × height)
