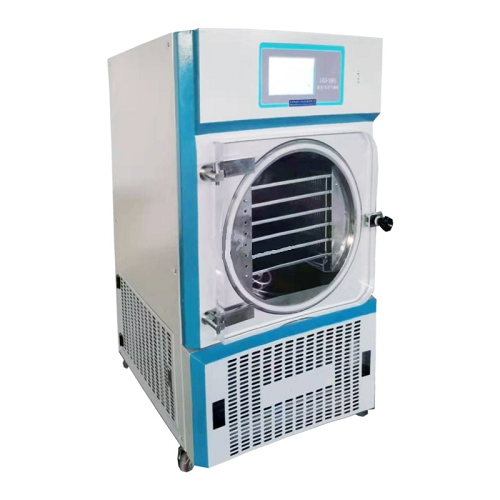

Food type desktop freeze dryer

Features:

Pre-freezing and drying are carried out at the same time in situ, which improves the freeze-drying efficiency and shortens the freeze-drying time.

It is made of stainless-steel clapboard with a conductivity of over 90% and good temperature uniformity.

High-efficiency mixed refrigerant medium, lower freezing point and higher boiling point, high heat exchange efficiency and long service life.

The drying curve optimization control algorithm can control the heating rate and vacuum value of the product during the drying stage.

Professional gas diversion design and control technology, strong water catching capacity and high drying efficiency.

Industrial-grade embedded touch screen + dedicated SH-HPSC-III modular controller, the system is stable and reliable, and the control accuracy is high.

The professionally designed FD-MANAGER control system can save multiple sets of process recipes, and can adjust the process in real time during the drying process to improve the process optimization rate.

Flexible manual + automatic control mode, manual for exploring the process, automatically for mass production.

Accurate sensor calibration function ensures the accuracy of long-term use process parameters.

User level and password can be set, decentralized operation and management.

Optional powerful LYO-MEGA host computer control system, which can record and save operating data, curves and alarm records for up to ten years to improve the traceability of the product; at the same time, it is convenient for observation, operation and fault diagnosis.

Non-standard customization can be made according to user needs.

Technical parameters:

Freeze-drying area: 0.6㎡

Material tray size: 300×400mm

Number of material trays: 6

Shelf size: 300×400mm

Number of shelves: 6 layers

Cold trap temperature: ≤-45℃ (no load)

Water catching capacity: 8KG

Ultimate vacuum: ≤10pa (no load)

Installed power: 2700w

Host weight: 280kg

Overall dimensions of the host: 700×850×1500mm

Cooling method: air cooling

Plate material: 6L (material thickness: 10mm)
