Heating in-situ freeze dryer

Model ID: FD-12S/18S

FD-12S/18S freeze-dryer is a small vertical freeze-drying equipment, which has the functions of baffle heating and programmable. They are suitable for lab use or small-scale production, and they can meet requirements for most laboratories.



Main features

Integral structure design, small size, no external flange, easy to use, no leakage.

All materials in contact with the product are inert materials to meet the requirements of GLP.

Cold trap and operating table are made of stainless steel, which is corrosion-resistant and easy to clean.

All stainless-steel inflatable (drainage) valves designed and manufactured by our company are safe, anticorrosive and leak-free.

The cold trap has large opening, no inner coil, with sample pre-freezing function, and no cryogenic refrigerator is needed.

Specialized gas diversion technology, uniform cold trap ice capture, ice capture ability.

International well-known brand compressor, high efficiency and energy saving, long service life, low noise.

Well-known brand vacuum pump, high pumping speed, achieve higher vacuum limit.

Vacuum pump protection function, can set the starting cold trap temperature of vacuum pump, protect the service life of vacuum pump.

7-inch real-color industry embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.

Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

The shelf electric heating safety. The control system voltage (36V) temperature can control the heating rate.

Flexible manual + automatic control mode, manual groping process, automatic batch production.

Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance.

User level and password can be set, and operation management can be decentralized.

Powerful sensor calibration function ensures long-term use of measurement accuracy.



Technical index

Model


FD-12S

FD-18S

Specification

Unit

FD-12S-R

Standard

FD-12S-MR

Manifold

FD-12S-TP

Top-press

FD-12S-MTP

Manifold   Top-press

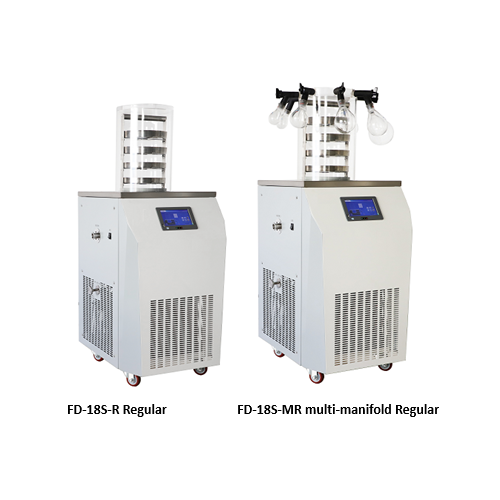

FD-18S-R

Standard

FD-18S-MR

Manifold

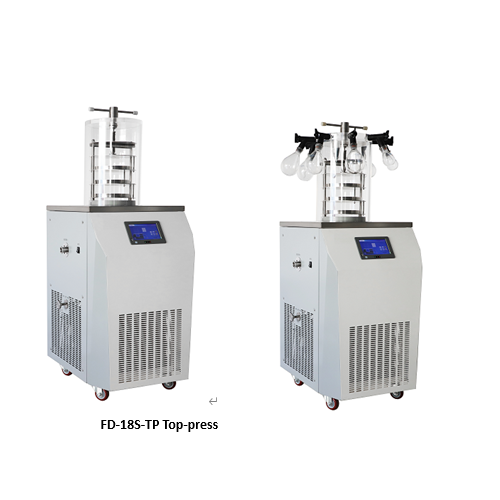

FD-18S-TP

Top-press

FD-18S-MTP

Manifold Top-press

Freeze-drying   area

0.12

0.08

0.18

0.27

0.18

0.27

0.09

0.09

Cold   trap temperature



-56 (no-loading),   option -80 (no-loading)

Vacuum   degree

Pa

≤ 5 (no-loading)

Water-capture   capability

kg/24h

3-4

6

Tray   dimension

mm

φ200

φ180

φ240

φ200

Trays   number

    pcs

4

3

4

6

4

6

3

3

Tray   spacing

mm

70

70

Power

w

970

1400

Weight

kg

62

105

Dimension   (-56   )

mm

580×500×720

630×580×970

Dimension   (-80   )

mm

770×550×720

810×580×950

Drying   chamber size

mm

Ф260×430

Ф260 × 430 + flask interface: 8pcs

Ф260×490

Ф260 × 490 + flask interface: 8pcs

Ф300×445

Ф300×445+ flask interface:   8pcs

Ф300×540

Ф300×540+   flask interface: 8pcs

Diameter   of cold trap

mm

Ф215

Ф270

Cold   trap depth

mm

240

400

Bulk   capacity (thickness 10mm)

L

1.2

0.8

1.8

2.7

1.8

2.7

0.9

0.9

Vial   loading number

pcs

-

-

Ф12mm492

-

-

-

-

Ф12mm615

pcs

-

-

Ф16mm297

-

-

-

-

Ф16mm345

pcs

-

-

Ф22mm147

-

-

-

-

Ф22mm183

Defrosting

-

Natural   defrosting (option electric defrosting)

Power

-

1Ph   + N + PE, 220V
