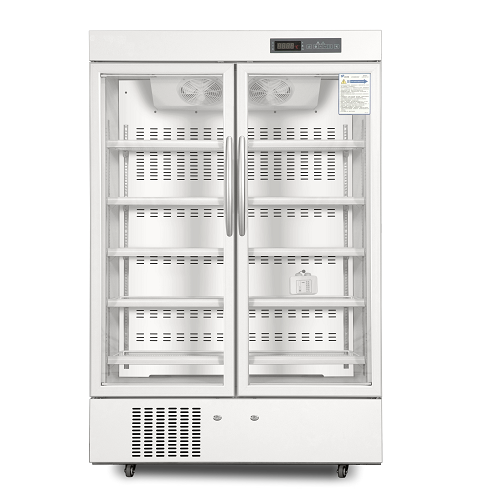

Pharmacy Refrigerator

Model ID: DMPC-5V656

Features

l  Accurate Temperature control technology to make the temperature maintain 2~8and increment 0.1.

l  Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity.

l  Designed for ambient temperature 10~32with humidity below 95%.

l  Three layer toughened glass door with heater to avoid condensation.

l  Color spray steel plate inner chamber for friendly using and easy cleaning.

l  Wide available voltage range: 187V~242V



 Safety

Ø  Safety door lock and controller setting password to prevent unauthorized access.

Ø  Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.

Ø  Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.

Ø  Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar

Ø  Power failure protection: turn on delay of the cooling system after power failure.

Ø  Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.

 Humanized design

Ø  4 casters,and two with stopper for easy moving and fixation.

Ø  10 adjustable shelves for easy storing.

Ø  Special designed service-free drainage system, ensure no water in the cabinet.

Ø  Auto on/off LED light with manual switch on control panel.

Ø  Automatic springback design of double heated glass door

Ø  Standard test hole for convenient installation of temperature recorder

Warranty

Ø  One year warranty, free accessories and technical support during the product warranty period



       Reliable control system: ±3°C

       Forced-air cooling system, frost-free

       Glass door with heater, condensation-free

       Wide voltage design: 187V~242V available

       4 visual and audible alarms

Performance


Refrigeration System

Temperature Range

2~8°C

Compressor

1

Ambient Temperature

+10~+32°C

Refrigerant

R290

Controller

Microprocessor

Cooling Type

Forced air cooling

Display

Digital Display

Defrost Type

Automatic




Electrical Data


Alarm

Power Supply(V/Hz)

220/50~60; 115/60

High/Low Temperature

Y

Rated Power(W)

385

Sensor Error

Y

Electrical Current(A)

2.3

Power Failure

Y

Power Consumption

5.75 kWh/24h

Door ajar

Y




Dimensions


Accessories

Capacity

656L

Caster

4

Interior Size(W*D*H)

1100*454*1325mm

Light

LED

Exterior Size(W*D*H)

1240*630*1895mm

Shelf

10

Package Size(W*D*H)

1335*710*2000mm

Temp. Recorder

Chart recorder

Optional

N.t./G.t.(approx)

166/184kg

Loading Qty(20'/40'/40'H)

13/27/27

Test hole

1/25mm
