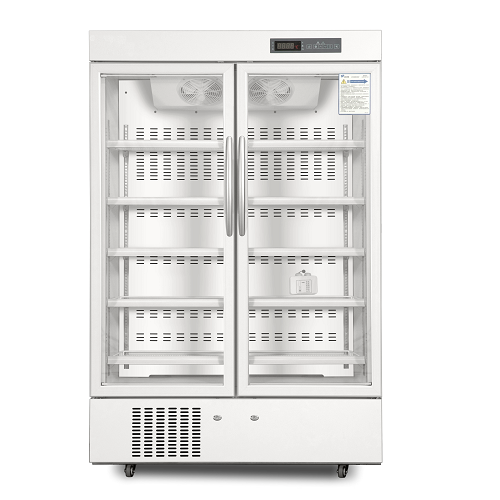

Pharmacy Refrigerator

Model ID: DMPC-5V1006

Features

l   Adjustable temperature range 2-8

l   Microprocessor control, digital display, and temperature adjustment with an increment of 0.1
Large digital display screen

l   Temperature variation within ±3

l   Permanently lubricated cooling fan for safety and longevity

l   High efficiency specialty compressor with known field reliability

l   Forced- air cooling with optimized air distribution system designed

Safety

l   Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.

l   Visual and audible alarm system:High/low temperature, thermostat failure alarm,power failure alarm, door ajar.

l   Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

l   Keyboard lock, password protection to avoid set parameter randomly.

l   Wide available voltage range: 187V~242V.



Humanized design

l   4 casters with stopper for easy moving and fixation.

l   10 adjustable shelves for easy storing.

l   Safety lock to prevent unauthorized access  .

l   Auto on/off  LED light with manual switch on control panel.



Certificate:

l   CE;ISO14001.ISO9001.ISO13485.ISO45001

Warranty

l   1 year free spare parts and remote technical support.



    Reliable control system    Inside temperature 2~8°C

       Forced-air cooling system   Frost-free

       Service-free drainage system

       Wide voltage range   187V~242V available

       5 visual and audible alarms



Performance


Refrigeration System

Temperature Range

+2~+8

Compressor

1

Ambient Temperature

10~32°C

Refrigerant

R290

Controller

Microprocessor

Cooling Type

Forced-air cooling

Display

Digital Display

Defrost Type

Frost free



Electrical Data

Alarm

Power Supply(V/Hz)

220/50~60; 115/60

High/Low Temperature

Y

Rated Power(W)

425

Power Failure

Y

Electrical Current(A)

2.4

Door ajar

Y

Power Consumption

6.23 kWh/24h

Thermostat failure

Y



Dimensions

Accessories

Capacity

1006L

Caster

4

Interior Size(W*D*H)

1100*684*1325mm

Lamp

LED

Exterior Size(W*D*H)

1240*820*1900mm

Door

2/Heating glass door with automatic rebound

Package Size(W*D*H)

1335*945*2000mm

Shelf

10

N.t./G.t.(approx)

189/213kg

Test hole

1/25mm

LoadingQty(20'/40'/40H)

8/18/18

Temperature recorder

Optional
