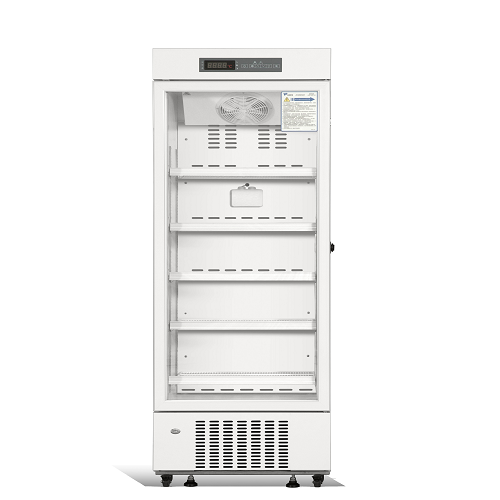

Pharmacy Refrigerator

Model ID: DMPC-5V416

Features

Ø  Accurate temperature controller, ensure the inside temperature within 2~8°C and accuracy 0.1 °C.

Ø  Specially designed forced-air cooling system, ensure frost-free cabinet and good temperature uniformity.

Ø  Suggested ambient temperature: 10~32°C.

Ø  LOW-E toughened Glass door with double-layer Hollow Insulation

Ø  Color spray steel plate inner chamber for friendly using and easy cleaning.

Ø  Wide available voltage range: 187V~242V



 Safety

Ø  Safety door lock and controller setting password to prevent unauthorized access.

Ø  Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.

Ø  Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.

Ø  Visual and audible alarm system: High/low temperature, power failure, sensor failure, door ajar

Ø  Power failure protection: turn on delay of the cooling system after power failure.

Ø  Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.

Ø  Keyboard lock, password protection to avoid set parameter randomly.



 Humanized design

Ø  4 casters 2 with stopper and 2 adjustable feet for easy moving and fixation.

Ø  5 adjustable steel wire shelves for easy storing.

Ø  1 Standard test hole for convenient installation of temperature recorder

Ø  Special designed service-free drainage system, ensure no water in the cabinet.

Ø  Auto on/off LED light with manual switch on control panel.



       Reliable control system    Inside temperature 2~8°C

       Forced-air cooling system   Frost-free

       Service-free drainage system

       Wide voltage range   187V~242V available

       5 visual and audible alarms



Performance


Refrigeration System

Temperature Range

2~8°C

Compressor

1

Ambient Temperature

+10~+32°C

Refrigerant

R600a

Controller

Microprocessor

Cooling Type

Forced air cooling

Display

Digital Display

Defrost Type

Frost free




Electrical Data


Alarm

Power Supply(V/Hz)

220/50~60; 115/60

High/Low Temperature

Y

Rated Power(W)

175

Sensor Error

Y

Electrical Current(A)

1.26

Power Failure

Y

Power Consumption

 2.37 kWh/24h

Door ajar

Y




Dimensions


Accessories

Capacity

416L

Caster

4

Interior Size(W*D*H)

685*429*1380mm

Lamp

LED

Exterior Size(W*D*H)

780*580*1920mm

Shelf

5

Package Size(W*D*H)

880*640*2100mm

Temp. Recorder

Optional

N.t./G.t.(approx)

120/133kg

Loading Qty(20'/40'/40'H)

 21/44/44

Test hole

1/25mm
