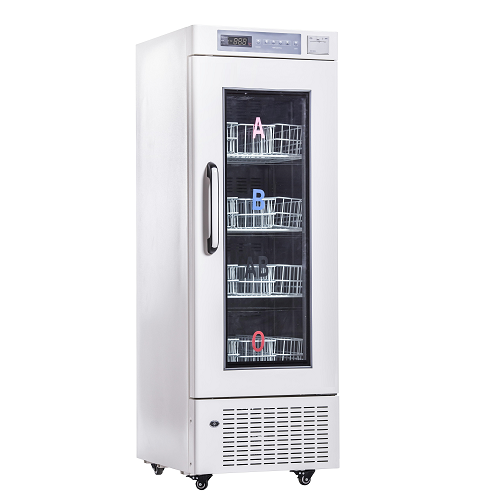

Blood Bank Refrigerator

Model ID: DMBC-4V208

Features

l  Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C.

l  Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity.

l  Three layer toughened glass door with heater to avoid condensation.

l  340 stainless steel inner chamber for friendly using and easy cleaning.

l  Wide available voltage range: 187V~242V



Safety

l  Two temperature sensors inside the chamber to ensure the accuracy of display temperature.

l  Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.

l  Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.

l  Safety door lock and controller setting password to prevent unauthorized access.

l  Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening.

l  Power failure protection: turn on delay of the cooling system when power failure.

l  Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.

l  Temperature printer: print current inside temperature automatically per 10 minutes.



Humanized design

l  4 casters with stopper for easy moving and fixation.

l  Standard 25mm test hole for easy connecting to temperature monitoring systems.

l  LED light for easy checking.

Certificate:

l  ISO14001.ISO9001.ISO13485.ISO45001;FDA

Warranty

l  1 year free spare parts and remote technical support.



Special

 Large storage capacity: 132 X 450ml blood bags

       Reliable control system: 4±1°C

       Forced-air cooling system, frost-free

       Glass door with heater, condensation-free

       Wide voltage design: 187V~242V available

       Build-in back-up battery: 8 hours power failure alarm

       5 visual and audible alarms



Performance


Refrigeration   System

Temperature Range

4°C±1°C

Compressor

1

Ambient Temperature

10~32°C

Refrigerant

R134a

Controller

Microprocessor

Cooling Type

Forced-air cooling

Display

Digital Display

Defrost Type

Frost free



Electrical Data

Alarm

Power Supply(V/Hz)

220/50~60; 115/60

High/Low Temperature

Y

Rated Power(W)

200

Sensor Error

Y

Electrical Current(A)

0.8

Power Failure

Y

Power Consumption

 2.22 kWh/24h

Door ajar

Y



Dimensions

Accessories

Capacity

208L

Caster

4

Interior Size(W*D*H)

432*462*978mm

Lamp

LED

Exterior Size(W*D*H)

522*600*1550mm

Shelf

4

Package Size(W*D*H)

572*685*1570mm

Test hole

1

N.t./G.t.(approx)

96/120kg

Temperature printer

1

Loading Qty(20'/40'/40'H)

27/60/60

Temperature recorder

Optional

Blood bags(450ml)

132

USB

Optional
