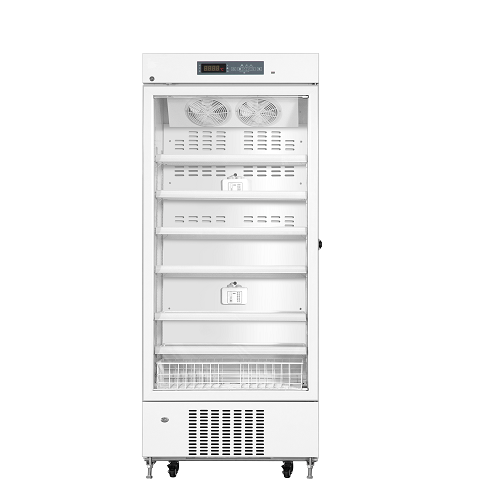

Pharmacy Refrigerator

Model ID: DMPC-5V415

Features

l   Adjustable temperature range 2-8

l   Microprocessor control, digital display, and temperature adjustment with an increment of 0.1
Large digital display screen

l   Temperature variation within ±3

l   Permanently lubricated cooling fan for safety and longevity

l   High efficiency specialty compressor with known field reliability

l   Forced- air cooling with optimized air distribution system designed

l   Standard with USB port, easy to download temperature data and alarm data.

l   To achieve maximum temperature uniformity and stability

l   Optimized refrigeration system design for more effective cooling and speedy recovery

Safety

l   Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 48 hours without AC power.

l   Visual and audible alarm system:High/low temperature, thermostat failure alarm,power failure alarm, door ajar.

l   Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

l   Keyboard lock, password protection to avoid set parameter randomly.

l   Wide available voltage range: 187V~242V.



Humanized design

l   Optimized space utilization design with multi - level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.

l   Standard with LED Interior light

l   Safety lock to prevent unauthorized access



Certificate:

l   CE;ISO14001.ISO9001.ISO13485.ISO45001

Warranty

l   1 year free spare parts and remote technical support .





Performance

Refrigeration System

Temperature Range

+2~+8

Compressor/Brand

1/China brand

Ambient Temperature

+10~+32°C

Refrigerant

R134a

Controller

Microprocessor

Cooling Type

Force air Cooling

Display

Digital Display

Force air Cooling

Auto

Alarm

Dimensions

High/Low Temperature

Y

Capacity

415

Power Failure

Y

Interior   Size(W*D*H)

685*429*1380mm

Door ajar

Y

Exterior   Size(W*D*H)

800*552*1940mm

Thermostat failure

Y

Package   Size(W*D*H)

890*655*2100mm

Backup battery failure alarm

Y

N.t./G.t.(approx)

120/133kg

Condenser fault alarm

Y

Loading   Qty(20'/40'/40'H)

18/39/39

Ambient Temperatures

Y



Electrical Data

Accessories

Power Supply(V/Hz)

220~240V/50~60;115/60

Inner Door

1(/Heating glass door)

Rated Power(W)

280W

Shelf

6

Electrical Current(A)

1.7A

Basket

1

Power Consumption

3.97kWh/24h

Data logger

Optional

Power failure alarm

48H

Test hole

1/25mm
