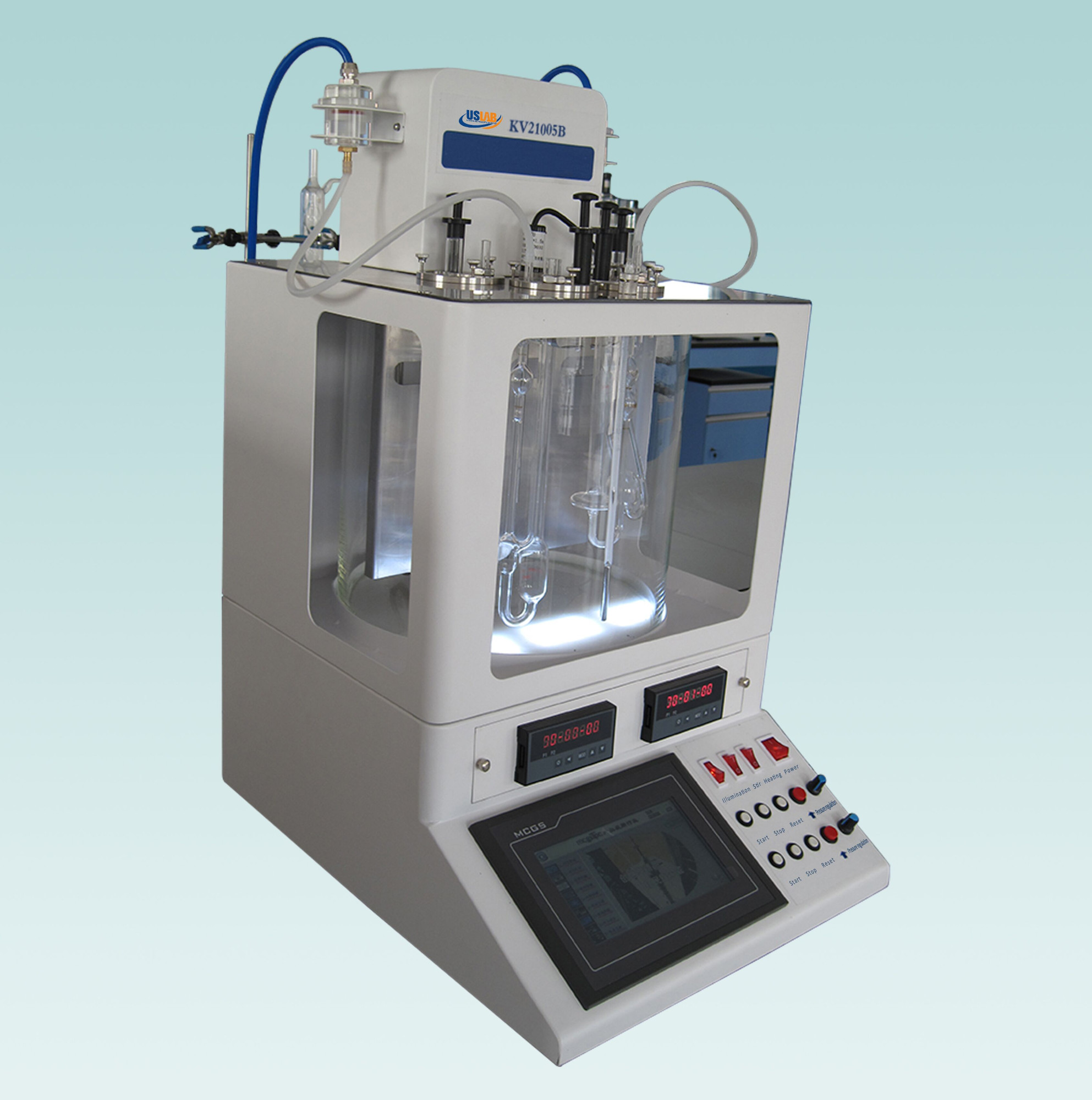

Kinematical Viscosity Tester

Model ID: KV21005B


Semi-automatic kinematical viscosity apparatus conforms the ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity). It is used to test the of liquid petroleum products, both transparent and opaque, by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer. The dynamic viscosity, η, can be obtained by multiplying the kinematic viscosity, ν, by the density, ρ, of the liquid. Under certain constant temperature. The range of kinematic viscosities covered by this apparatus method is from 0.2 to 300 000 mm2/s at all temperatures.



1.Automatic display the test results and conversion, it can save thousands of data, needle printer

2.Equipped with self-suction function, one-button operation

3.Cronometro is detachable, also can be calibrated

4.Equipped with universal holder, it can use various kinds of viscometers (Ubbelohde, Routine, Opaque, Pinkevitch)


Technical parameters

1.Rated voltage:AC220V±10%,50Hz

2.Heating power:2000W

3.Temperature Control: Digital display temperature control

4.Sensor: Pt100 (Platinum resistor)

5.Temperature Accuracy: ±0.01°C

6.Agitation way: Motor stirring, 1200r/min

7.Bath holes: Four

8.Printer: Needle printer

9.Ambient requirements: Temperature:10~40°C; Humidity≤85%

10. Net dimension: 410*590*700,30kg
