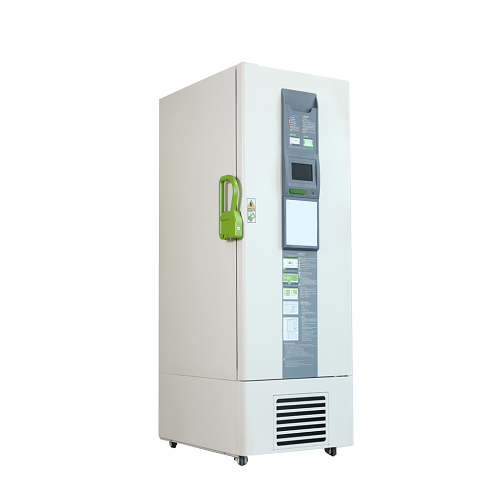

Ultra Low Temperature Freezer are specially designed to store samples products
Features
l Ambient temperature :10℃~32℃.
l Accurate Temperature control technology to make the temperature maintain -40°C~-86°C and accuracy 0.1 °C.
l Independent research and development of mixed refrigerant can make device save energy 50%.
l if one system breaks down the left one could continue working to maintain inner temp at -80C, this means you would have double safety guarantee for your storage inside
l The first dual system invented and released in domestic market with the rapid cooling speed to cool down from
room temperature to -80 in 3.5hours.
l 304 stainless steel inner chamber for friendly using and easy cleaning.
l VIP II PLUS technology, special narrow design for entering elevators.
Safety
l Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
l Visual and audible alarm system: High/low temperature, Power failure, Abnormal voltage, Sensor error, Filter screen check, Low battery, Condenser clean, High ambient temperature, Door ajar alarm
l Power failure protection: turn on delay of the cooling system when power failure, restart delay protection.
l Keyboard lock, password protection to avoid set parameter randomly.
l Special noise reduction design.
Humanized design
l 4 casters with stopper for easy moving and fixation.
l Standard 25mm test hole for easy connecting to temperature monitoring systems.
l 3 adjustable shelves for easy storing.
l Removable condenser dust gauze convenient for cleaning and maintenance.
l Removable inner door for user to defrost and clean.
l Standard USB port, USB port to read temperature and alarm conditions in recent 1 months.
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001
Warranty：
l 1 year free spare parts and remote technical support.
special：
Patented technology, mixed refrigerant.
Standard remote alarm port
10 visual and audible alarms
Performance | Refrigeration System | ||||
Temperature Range | -40~-86°C | Compressor/Brand | 2/SECOP | ||
Ambient Temperature | +10~+32°C | Refrigerant | Mixed | ||
Controller | Microprocessor | Cooling Type | Direct cooling | ||
Display | LCD Display | Defrost Type | Manual | ||
Electrical Data | Dimensions | ||||
Power Supply(V/Hz) | 220/50~60; 115/60 | Capacity | 588L | ||
Rated Power(W) | 1500W | Interior Size(W*D*H) | 606*738*1310mm | ||
Electrical Current(A) | 9.1 | Exterior Size(W*D*H) | 885*1100*1995mm | ||
Power Consumption | 16.5kWh/24h | Package Size(W*D*H) | 970*1140*2190mm | ||
Power failure backup system | 72H | N.t./G.t.(approx) | 297.5/358.5kg | ||
Loading Qty(20'/40'/40'H) | 12/24/24 | ||||
Alarm | Accessories | |||
High/Low Temperature | Y | Caster | 4 | |
Sensor Error | Y | USB port | Y | |
Power Failure | Y | Remote alarm port | Y | |
Door ajar | Y | RS232/485 port | Y | |
High Ambient temp. | Y | Inner Door/shelf | 2/3 | |
Condenser clean | Y | Test hole | 1/25MM | |
Low battery | Y | Data logger | Optional | |
Filter screen check | Y | CO2/LN2 back up system | Optional | |
Abnormal voltage | Y | Cold storage box loading QTY | 40000 | |
