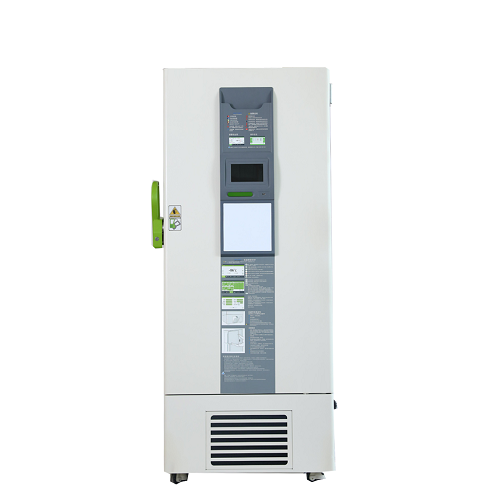

Ultra Low Temperature Freezer are specially designed to store samples products
Features
l Ambient temperature :10℃~32℃.
l Accurate Temperature control technology to make the temperature maintain -40°C~-86°C and accuracy 0.1 °C.
Independent research and development of mixed refrigerant can make device save energy 50%.
l if one system breaks down the left one could continue working to maintain inner temp at -80C, this means you would have double safety guarantee for your storage inside
l The first dual system invented and released in domestic market with the rapid cooling speed to cool down from
room temperature to -80 in 3.5hours.
l 304 stainless steel inner chamber for friendly using and easy cleaning.
l VIP II PLUS technology, special narrow design for entering elevators.
Safety
l Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
l Visual and audible alarm system:High/low temperature,Power failure,Abnormal voltage,Sensor error,Filter screen check,Low battery,Condenser clean,High ambient temperature,Door ajar alarm
l Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
l Keyboard lock, password protection to avoid set parameter randomly.
l Special noise reduction design.
Humanized design
l 4 casters with stopper for easy moving and fixation.
l Standard 25mm test hole for easy connecting to temperature monitoring systems.
l 3 adjustable shelves for easy storing.
l Removable condenser dust gauze convenient for cleaning and maintenance.
l Removable inner door for user to defrost and clean.
l Standard USB port,USB port to read temperature and alarm conditions in recent 1 months.
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001
Warranty：
l 1 year free spare parts and remote technical support.
special：
Patented technology, mixed refrigerant.
Standard remote alarm port
10 visual and audible alarms.
Performance | Refrigeration System | ||
Temperature Range | -40~-86°C | Compressor/Brand | 2/SECOP |
Ambient Temperature | +10~+32°C | Refrigerant | Mixed |
Controller | Microprocessor | Cooling Type | Direct cooling |
Display | LCD Display | Defrost Type | Manual |
Electrical Data | Dimensions | ||
Power Supply(V/Hz) | 220/50~60; 115/60 | 408L | 408L |
Rated Power(W) | 1350W | 606*575*1180mm | 606*575*1180mm |
Electrical Current(A) | 8 | 900*940*1940mm | 900*940*1940mm |
Power Consumption | 14.5kWh/24h | 955*960*2100mm | 955*960*2100mm |
Power failure backup system | 72H | 255/307kg | 255/307kg |
12/24/24 | 12/24/24 | ||
Alarm | Accessories | ||
High/Low Temperature | Y | Caster | 4 |
Sensor Error | Y | USB port | Y |
Power Failure | Y | Remote alarm port | Y |
Door ajar | Y | RS232/485 port | / |
High Ambient temp. | Y | Inner Door/shelf | 2/3 |
Condenser clean | Y | Test hole | 1/25MM |
Low battery | Y | chart recorder | Optional |
Filter screen check | Y | CO2/LN2 back up system | Optional |
Abnormal voltage | Y | Cold storage box loading QTY | 28800 |
