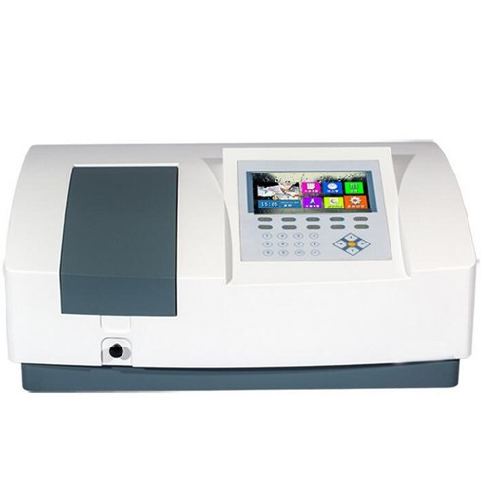

UV-VIS Spectrophotometer

Model ID: DN5000PLUS

Instrument description:

This series large screen scanning type ultraviolet visible spectrophotometer can meet the different needs of users ‘application requirements. It is designed by our instrument company for organic chemistry, biochemistry , pharmaceutical analysis, food inspection, medicine and health, environmental protection, water quality testing, life science and other scientific research and production fields, designed for high demand professional user determining accurately, using the latest microcomputer technology and electronic control system, optimize traditional optical path design and structure design, at the same time make the

instrument extend new functions, assure the accuracy, stability, durability.



Instrument functions and features:

1. First use the most advanced 32-bit microcontrollers ARM11, its frequency can reach 533 MHz Instrument inside could store 5000 testing data or 500 working curves, convenient for users to use.

2. Powerful function, main machine could independently complete photometric measurement and quantitative measurement, spectral scan, dynamics, DNA/protein test, multiple wavelength testing and data printing, etc.

3. Instrument adopts 7-inch LCD color screen display, directly display scanning atlas, simple screen interface, easy to use.

4. Open type software function design, instrument could store test data in the USB by MD-direct function.

The USB don’t need to be opened by any other assistant software. It could be opened by open process EXCEL software. It is convenient for users to edit and use directly on PC, saving working table space and convenient to use.

5. Socket type atmosphere lamp and tungsten lamp, without optical debugging after changing the lamp.

6.24 bits high speed, high precision A/D conversion, instrument with high precision, fast response.

7.large sample room, can accommodate 5-100 mm all kinds of cuvette.

8.It can connect to the printer directly, print map and experimental data.

9.Instrument adopts suspension type optical system design and long optical path design, thereby greatly improving the stability and reliability of the instrument and optical resolution of the instrument.

10. WINDOWS graphical interface, convenient to choose, and quick operation.

11. Newly improved screw driving structure, making the instrument good repeatability of wavelength accuracy, high precision of wavelength.



Instrument parameters index:



Model

DN5000 (Plus)

DN6000 (Plus)

Optical   system

double beam   proportion monitoring

double beam dual   channel

Wavelength range

190-1100nm

Wavelength Accuracy

±0.1nm (D2   656.1nm), ±0.3nm All-Region

Wavelength   repeatability

≤ 0.1nm

Spectral Bandwidth

2nm/1nm

Photometric range

0-200%T,   -4-4A

Photometric   accuracy

±0.002A(0-0.5A),   ±0.004A(0.5-1A), ±0.3 %T (0100 %T)

Photometric   repeatability

±0.001A(0-0.5A),   ±0.0012A(0.5-1A), ±0.1 %T (0100 %T)

baseline flatness

±0.0015A

±0.0010A

Stability

±0.0005A/h   (500nm located)

±0.0003A/h   (500nm located)

Stray light

≤0.03%T

Working mode

T,A,C,E

Display system

7inch large screen LCD color screen

Light source

Imported long life tungsten lamp, deuterium lamp

Data   output

USB/RS232   interface

Detector

  Imported Si   Photodiode

Configuration   list

   1 set of operational software, 1 pc of USB   data extending line, 1 pc of 8G data

  storage unit, 1 pc of soft dog
