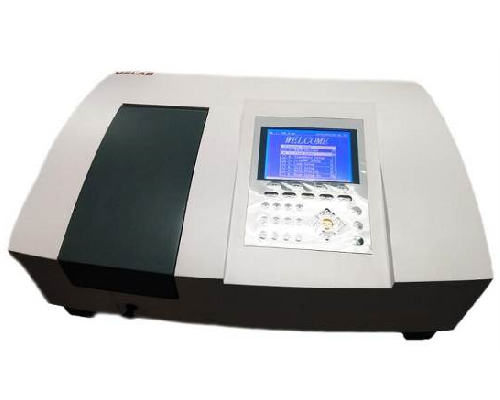

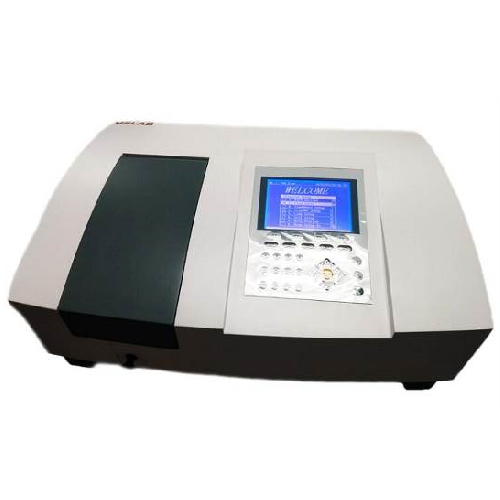

Double Beam UV Spectrophotometer

Model ID: D1900PC

Instrument Function:

l   Photometric measurements: simultaneous measurements at a wavelength of 1~ 6 of transmittance and absorbance.

l   Spectral measurement: in the wavelength range for transmission, absorbance and energy spectrum scanning, and various data processing such as peak and valley detection, derivative computation, spectrogram operation, etc.

l   Quantitative measurement: single wavelength, dual wavelength, three wavelength and multi-wavelength measurement. 1 ~ 9 work curve (1 ~ 4 times) regression.

l   Dynamic measurement: time scanning of transmittance and absorbency in any set of wavelengths and may carry on various data operations.

l   Data output: can undertake data file and parameter file access; the measured results are output in standard data file format.



Main features:

l   The newly designed excellent optical system, high-performance holographic blazed grating, to ensure the instrument of low stray light.

l   Double beam metering system, with advanced circuit tt&c system, make the instrument with high stability and low noise.

l   Automatic control systems, advanced design concepts to ensure that instrument with high reliability and stability.

l   Removable structure of sample room design, easy to replace different attachments. To satisfy different analysis demand.

l   Capacious open source chamber design, make the light source change more convenient.

l   Key components are of high quality; guarantee the high reliability of the instrument performance.

l   English and Chinese operating software under Windows environment, with much patent technology, provides abundant unique analysis capabilities.





Technical Parameters:

Model

D1900PC

Wavelength range:

190 nm-1100nm

Light source:

Imported tungsten lamp and Deuterium Lamp

Optical system:

double beam optical system, CT-type optical, 1200   l / mm holographic diffraction grating

Wavelength accuracy:

<= +/-0.1nm (656.1nm D2);

<= +/-0.3nm (full wavelength range)

Wavelength repeatability:

<=0.1nm

Stray light:

<=0.03%T (220 nm NAL liquor; 340nm NaNO2)

Photometric range:

0-200% T, -0.3-3A,0-9999C

Noise:

<= 0.0003 Abs/h

Baseline straightness:

<= +/-0.001A

Spectral bandwidth:

2nm

Drifting:

<= +/- 0.0004 Abs/h

Photometric accuracy:

±0.002A(0-0.5A), ±0.004A(0.5-1A),±0.2 %T (0100 %T)

Photometric repeatability:

±0.001A(0-0.5A), ±0.002A(0.5-1A),±0.1 %T (0100 %T)

Measure Mode:

transmittance, absorbency, energy, reflection

Scanning speed:

Fast, Medium, Slow

Wavelength and the setting mode

Setting freely

Keyboard:

Film   digital buttons

Detector:

Imported   silicon detector

Data output:

Printer or USB port

Power:

AC 220V/ 50Hz or AC110V/60Hz

Weight:

26kg
