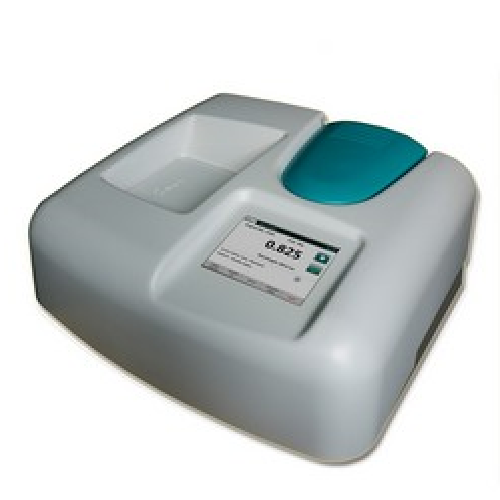

UV Spectrophotometer

Optical   path

double   beam

spectral   bandwidth

Variable   (0.5,1,1.5,2,4,5 nm)

Wavelength   range

190-1100   nm

Wavelength   accuracy

±0.1 nm(656.1nm), ±0.3   nm (whole range)

Wavelength   repeatability

≤0.1nm

Wavelength   setting

Automatic

Wavelength   resolution

0.1nm

Photometric   range

0~200%T,   -4~4A, 0~9999C, 0~9999F

Photometric   accuracy

±0.002A(0~0.5A),   ±0.004A(0.5~1A), ±0.2%T(0~100%T)

Photometric   repeatability

≤0.001A(0~0.5A),   ≤0.002A(0.5~1A), ≤0.1%T(0~100%T)

Baseline   drift

≤0.0004A/h   (500nm, OA)

Baseline   Flatness

±0.001A

Stray   light

≤0.03%T   (220/360nm)

Noise

±0.1%T(0%T)；±0.3%T(100%T)；±0.0004A(500nm)

light   source

Tungsten   lamp&D2 lamp

detector

Silicon   photodiode

Display

 8   inches color touch screen,800×600 pixel

Data   output port

USB, RS232

Power      requirements

AC90-250V,   50/60Hz

Ordering   information

N.W./G.W.

23kg/26kg

Dimension(L*W*H)

67*60*28cm

With   packing dimension

84*77*44cm

Configuration

4   cell auto cuvette holders (10-50 mm)

10mm   Quartz cuvette *2

10mm   Glass cuvette *4

Identify   your power cord from Ordering Information

Order   number

85001725

The   experimental results Can be printed by connecting Lab-kits micro printer.
