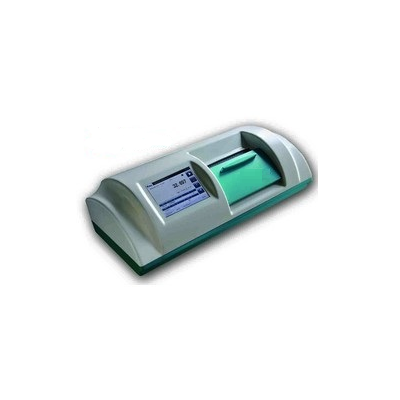

Polarimeter

Model ID: AP-digiFD1

» Operator management

» Tracing ability

» Software to safeguard data transfer



Details

Specification

AP-digiFD1

Measuring range

±90°

Resolution

0.001°

Accuracy

±0.01°

Reproducibility

±0.003°

Temperature range

0-100

Temperature resolution

0.1

T. control model

———

T. control range

———

T. control accuracy

———

Sensitivity

Min0.5%

Prism

polymer

Light source

LED, 100000 hours

Wavelength

589nm

Measuring mode

Optical rotation,
  Specific rotation, Concentration,
  International sugar scale

Measuring method

20,editable

Sample chamber

Up to 200mm

Interface

RS232, USB

Display

8 inches touch screen, color LCD

Database

8000 groups

Ordering Information

Order number

85001635

N.M. / G.W.

28Kg / 30Kg

Dimension(L*W*H)

72*37*24cm

With packing dimension

88*59*42cm

Configuration

200mm*1(glass tube)

100mm*1(glass tube)

Data tranfer safety management SW

Identify your power cord from Ordering information
