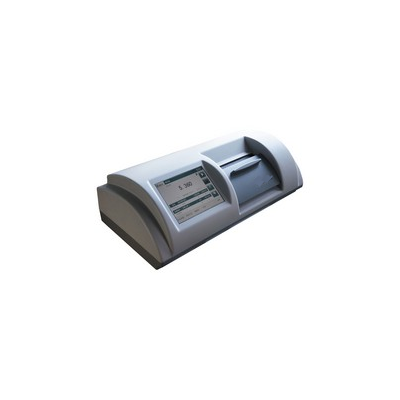

Polarimeter

Model ID: AP-digi8

» Touch screen

» Glan Thompson prism

» Competitive price

» 200mm Peltier instrument is available



Details

Specification

AP-digi8


Measuring range

±90°


Resolution

0.001°


Accuracy

±0.004°


Reproducibility

±0.003°


Temperature range

0-100


Temperature resolution

0.1


T. Control model

Peltier


T. Control range

10-50


T. Control accuracy

±0.1


Sensitivity

Min0.01%


Prism

Glan   Thompson


Light source

LED, 100000 hours


Wavelength

589nm


Measuring mode

Optical rotation;
  Specific rotation   ;
  Concentration   ;
  International sugar scale.





Sample chamber

up to   200mm


Interface

RS232, USB


Display

8-inch touch screen, color LCD


Database

4000 groups data


Ordering Information


Order number

85001631


N.W./G.W.

32kg / 35kg


Dimension(L*W*H)

72*37*24cm


With packing dimension

88*59*42cm


Configuration

200mm*1 (glass tube)

100mm*1 (T.controlled metal tube)

Syringe, Brush

4G USB flash

Identify your power cord from Ordering   information
