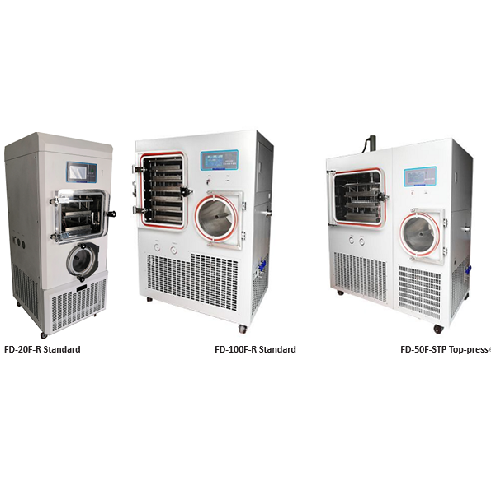

Silicon oil heating freeze dryer

FD-20F/30F/50F/100F/200F (silicon oil heating) freeze dryer as our patent machine, freezing and drying process made in situ. It changes the complex operation and prevent sample pollution, and make drying automation. These models have shelf heating and programmable functions. They can records freeze drying curves; data can be output by U-disk. User can clearly view the freeze-drying process.


Feature

The company's patented product square warehouse in situ vacuum freeze dryer, prefreezing, drying in situ completed, easy to operate, good drying effect.

The drying chamber door is made of ACRYLIC material, which is colorless, transparent and can observe the whole process of freeze-drying.

The inflatable (drainage) valve adopts safety diaphragm valve, which can connect inert gas source, fill inert gas after drying, and prolong the shelf life of materials.

Specialized gas diversion technology, uniform cold trap ice capture, ice capture ability.

International well-known brand compressor, high efficiency and energy saving, long service life, low noise.

The patented technology of partition and the fuzzy control technology of partition temperature have the advantages of small temperature difference of shelf, high precision of temperature control and even drying effect.

Powerful sensor calibration function ensures long-term use of measurement accuracy.

7-inch real-color industry embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.

The specially designed FD-PILOT control system can preserve hundreds of formulations, each of which contains 50 temperature control sections, so as to improve the process optimization rate.

Intelligent data recording system can record and display the temperature curve of cold trap, sample temperature curve and vacuum curve in real time. The derived data can be browsed and printed by computer and operated in a variety of ways to facilitate process optimization and drying effect verification.

Flexible manual + automatic control mode, manual for exploring process, automatic for batch production.

Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance.

User level and password can be set, and operation management can be decentralized.





Optional accessories and functions

Judgment function of freeze-drying end point

Eutectic point tester

Vacuum pump anti-return device

Cold trap electric heating defrosting

Oil mist filtration system

Vacuum regulating system

LYO-MEGA Software System

Mobile App Monitoring System

Backfill filter


Data recorder

Automatic backfill and drainage control system

Capacitive vacuum gauge

Eggplant bottle device

International brand vacuum pump

Non-standard customization


Technical index


Model

Unit

FD-20F-R

Standard

FD-30F-SR

Standard

FD-50F-SR

Standard

FD-100F-R

Standard

FD-200F-R

Standard

FD-20F-TP

Top-press

FD-30F-STP

Top-press

FD-50F-STP

Top-press

FD-100F-TP

Top-press

FD-200F-TP

Top-press

Freeze-drying area

0.3

0.4

0.7

1.04

2.25

0.2

0.3

0.5

1.15

2.25

Cold trap   temperature

< -75 (no-loading), option

Vacuum degree

Pa

≤ 5 (no-loading)

Shelf temp range

-55-+70 (no-load)

Water-capture   capability

kg/24h

≥ 6

≥ 8

≥ 10

≥ 15

≥ 25

≥ 6

≥ 8

≥ 10

≥ 15

≥   25

Tray dimension

mm

395×265

295×335

475×355

475×355

445*495

395×265

295×335

405×405

475×595

445*495

Trays number

piece

3

4

4

6

10

2

3

3

4

10

Shelf size

mm

400×270

300×340

480×360

480×360

500*900

400×270

300×340

410×410

480×600

500*900

Shelf spacing

mm

70

50

50

70

70

70

70

100

100

70

Power

w

3000

4500

5500

6500

8000

3000

5500

6500

7500

9000

Weight

kg

300

400

600

700

1200

300

400

800

1000

1350

Dimension

mm

840×750×1580

900×850×1350

1000×850×1420

1170×830×1665

1200*2100*1700

840×750×1580

1280×980×1550

1490×850×1620

1640×1100×1630

2100*1200*2300

Bulk capacity   (thickness 10mm)

L

3

4

7

10

20

2

3

5

11

20

Vial loading   number

piece

-

Ф12mm:1554

Ф12mm:2187

Ф12mm:3705

Ф12mm:8624

Ф12mm:16800

piece

-

Ф16mm:868
