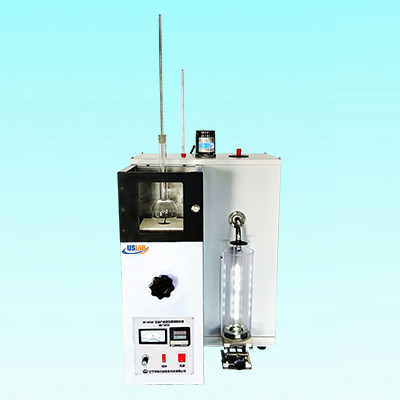

Distillation Apparatus for petroleum products

Model ID: DT21003A

Distillation apparatus for petroleum products is a new designed distillation tester. It conforms to standard ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure, which is suitable for light and middle distillates, automotive spark-ignition engine fuels with or without oxygenates, aviation gasolines, aviation turbine fuels, diesel fuels, biodiesel blends up to 20 %, marine fuels, special petroleum spirits, naphthas, white spirits, kerosines, and Grades 1 and 2 burner fuels.


1. The apparatus adopts quartz tube furnace heating, stainless steel bath and stainless-steel lighter stand, etc.

2. The apparatus adopts silicone plug to fix the thermometer and distillation flask

3. Attach measuring cylinder insulation bath, cylinder plug, cylinder SS lighter stand and SS briquette

4. Quartz glass inspection window

5. LED auxiliary lighting, Digital voltmeter display


Technical parameters

1.Rated voltage:AC220V±10% 50Hz

2.Heating power:0~1000W (Continuously adjustable)

3.Bath temperature range:0~60

4.Temperature controlling precision: ±0.5

5.SSVR (Stepless)

6.Agitation way: Motor stirring

7.Electric furnace body control: Manual

8.Distillation Flask:125ml

9.Graduated cylinder:100ml

10.Ambient requirements: Temperature 10~40°C; Humidity≤85%
