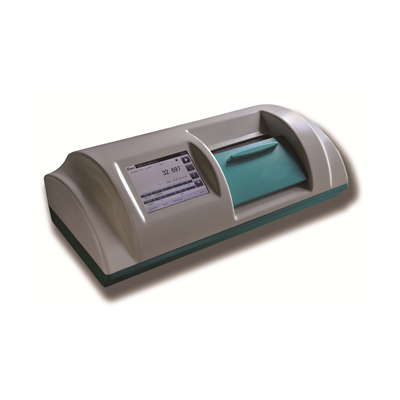

Polarimeter

Model ID: AP-digiFD7

» Operator management

» Tracing ability

» Software to safeguard data transfer



Details

Specification

AP-digiFD7

Measuring   range

±90°

Resolution

0.001°

Accuracy

±0.004°

Reproducibility

±0.003°

Temperature   range

0-100

Temperature   resolution

0.1

T.   control model

———

T.   control range

———

T.   control accuracy

———

Sensitivity

Min0.1%

Prism

Glan   Thompson

Light   source

LED   , 100000 hours

Wavelength

589nm

Measuring   mode

Optical   rotation,

Specific   rotation, Concentration,

International   sugar scale

Measuring   method

20,editable

Sample   chamber

Up   to 200mm

Interface

RS232,   USB

Display

8   inches touch screen, color LCD

Database

8000   groups

Ordering   Information


Order   number

85001637

N.M.   / G.W.

28Kg   / 30Kg

Dimension(L*W*H)

72*37*24cm

With   packing dimension

88*59*42cm

Configuration

200mm*1(glass   tube)
  100mm*1(glass tube)
  Data transfer safety management SW
  Identify your power cord from Ordering information
