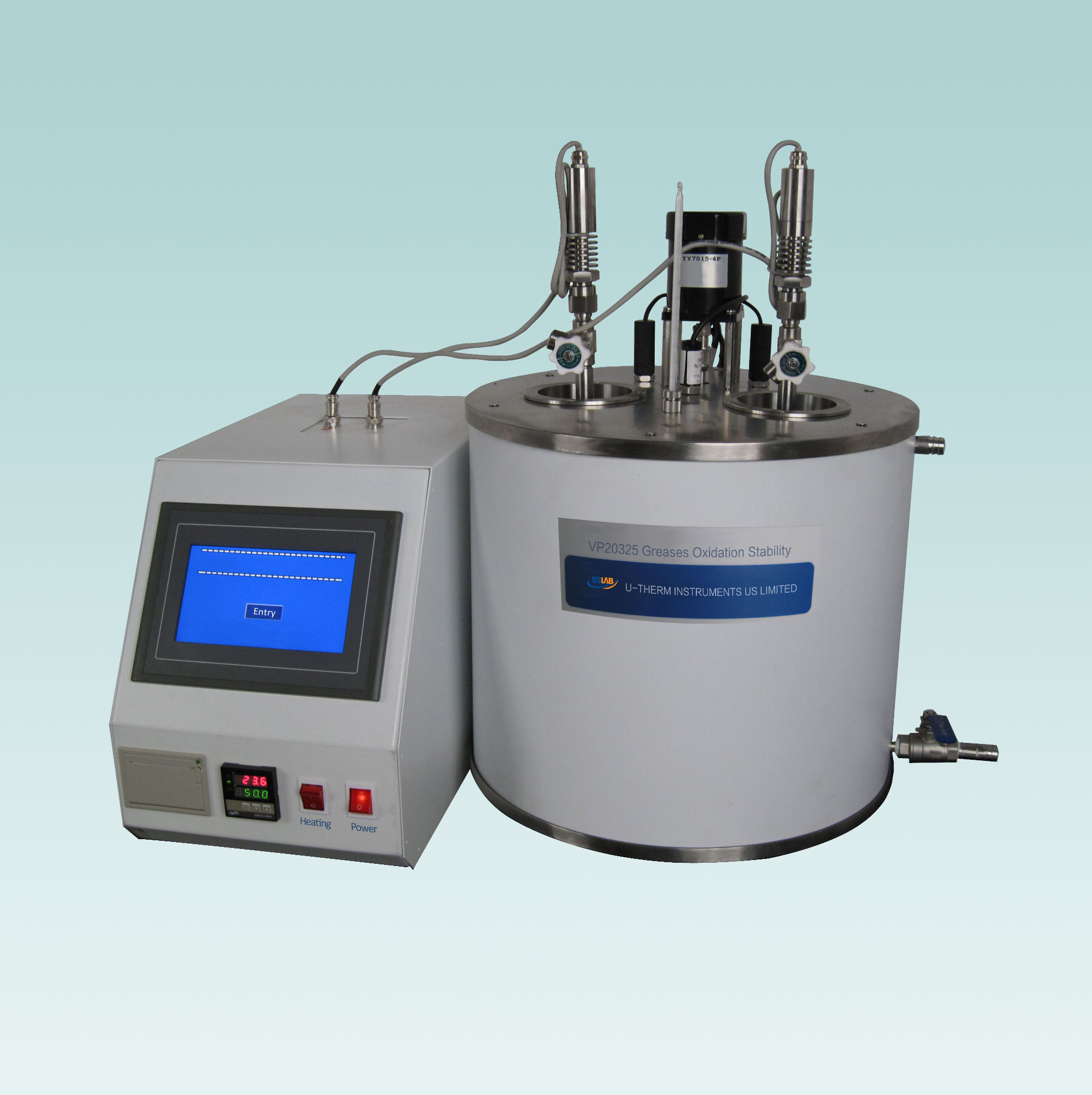

Greases Oxidation Stability

Overview

Greases Oxidation Stability apparatus conforms to the ASTM D942 Standard Test Method for Oxidation Stability of Lubricating Greases by the Oxygen Pressure Vessel Method, This apparatus determines resistance of lubricating greases to oxidation when stored statically in an oxygen atmosphere in a sealed system at an elevated temperature under conditions oftest

Features

1.All procedures controlled by a touched LCD screen, it can record and display test value, also determine final point automatically.

2.We equip with 0.1 level pressure transmitters for the apparatus, with pressure calibration device.

3.We equip Agilent measured transmitter processor for the apparatus.

4.Accurate oxygenating connector with convenient usage.

5.The apparatus is equipped with standard heatproof vessel and vessel stand.

Technical Parameters

1.Rated voltage:AC220V±10% 50Hz

2.Heating power:1500W

3.Temperature control point:99℃

4.Temperature control accuracy:±0.1℃

5.Operation method: 4 wires touched LCD

6.Sensor:Pt100(RTD)

7.Test station:2 holes

8.Ambient requirements:Temperature10~40℃ ;Humidity≤85%
