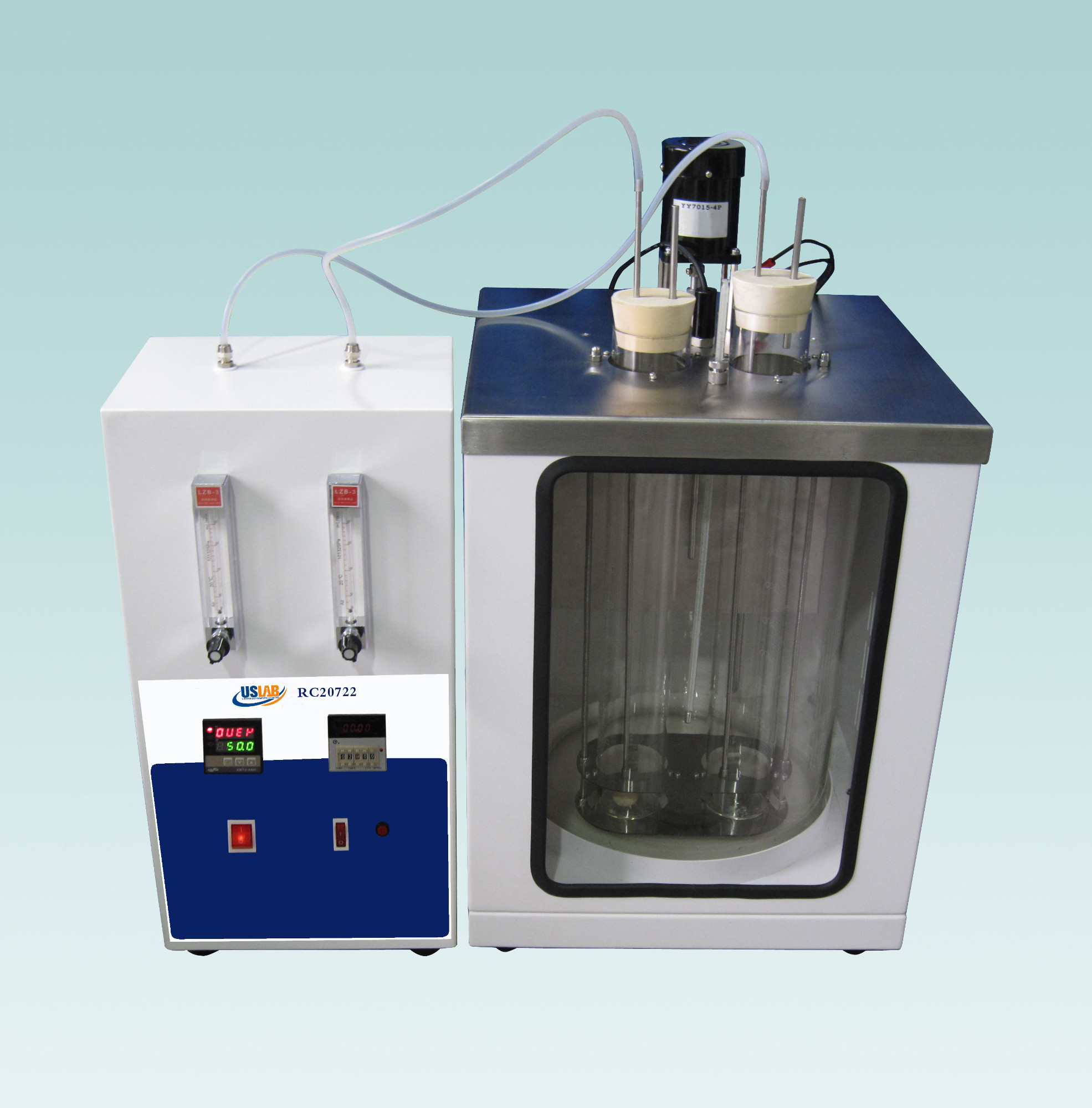

Foaming Characteristic Tester

Overview

High-temperature Foaming Charateristic Apparatus conforms to ASTM D6082 Standard Test Method for High Temperature Foaming Characteristics of Lubricating Oils, it is used to measure the tendency of oils to foam at high temperature can be serious problem in system such as high-speed gearing, high volume pumping, and splash lubrication. Fomaing can cause inadequate lubrication, cavitation and loss of lubricant due to overflow.

Features

1.Imported stainless steel foam to guarantee the accurate result

2.Heat-resistant glass bath, transparent and safe

3.Precise flow meter

4.The apparatus equips air tower and air pump

5.HK-0722A equips double baths with 4 holes and 4 groups of flow meter

Technical parameters

1.Rated Voltage : AC220V±10% 50Hz

2.Power: 2000W

3.Timing method: Digital timer

4.Foam pump: Imported stainless steel

5.Temperature control point: 150℃±0.5℃

6.Sensor: Pt100

7.Bath stir: Motor stirring

8.Ambient requirement:temperature:10-40℃；Humidity≤85%
