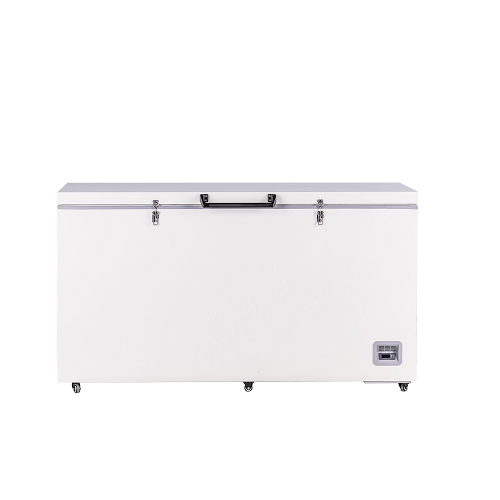

Deep Freezer

Model ID: DMDF-40H485

Deep Freezer are designed to store samples products.



Wide temperature range :10~32ambient temperature can reach -20-40

Accurate Temperature control technology to make the temperature maintain-20-40and accuracy 0.1 °C.

SPCC sprayed steel external material and inner chamber for friendly using and easy cleaning.

High-density polyurethane foam



Safety

Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.

Visual and audible alarm system: High/low temperature, Sensor error, Thermostat failure alarm, power failure alarm

Power failure protection: turn on delay of the cooling system when power failure, restart delay protection.

Keyboard lock, password protection to avoid set parameter randomly.

Wide available voltage range: 198V~242V.



Humanized design

4 casters,2 casters with stopper for easy moving and fixation.

1 Standard test hole(25mm), convenient for temperature monitoring.



Certificate:

ISO14001.ISO9001.ISO13485.ISO45001

FDA List and CE



Warranty

1 year free spare parts and remote technical support.



Special

4 visual and audible alarms. 1 Standard test hole(25mm)



Performance

Refrigeration System

Temperature Range

-20~-40°C

Compressor/Brand

1/CUBIGEL

Ambient Temperature

+10~+32°C

Refrigerant

R290

Controller

Microprocessor

Cooling Type

Direct cooling

Display

Digital Display

Defrost Type

Manual

Electrical Data

Dimensions

Power Supply(V/Hz)

220~240V/50~60;115/60

Capacity

485L/17.12   cu.ft

Rated Power(W)

295

Interior Size(W*D*H)

1455*525*665mm

Electrical Current(A)

2.45

Exterior Size(W*D*H)

1670*810*930mm

Power Consumption

3.45   kWh/24h

Package Size(W*D*H)

1775*880*1060mm



N.t./G.t.(approx)

108/135kg



Loading Qty(20'/40'/40'H)

12/26/26

Alarm

Accessories

High/Low Temperature

Y

Caster

4

Sensor Error

Y

Remote alarm port

/

Power Failure

Y

Test hole

1/25MM

Door ajar

N

Material

Ambient temp.

/

Inside material

Stainless   steel

Power failure backup system(alarm)

12H

Outside material

Color   sprayed steel



Insulation

PURF
