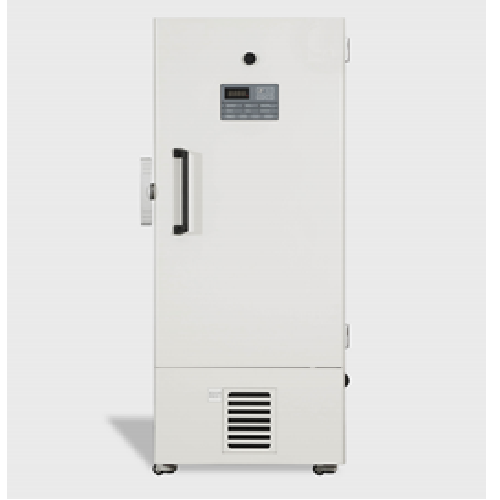

Ultra-low Temperature Freezer

Model ID: DMDF-86V340E

Ultra Low Temperature Freezer are specially designed to store samples products.



Features

Wide temperature range :10~32ambient temperature can reach -86.

Accurate Temperature control technology to make the temperature maintain -40~-86and accuracy 0.1 °C.

Independent research and development of mixed refrigerant can make device save energy 50%.

Better uniformity, uniformity is increased 30%.

The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.

304 stainless steel inner chamber for friendly using and easy cleaning.



Safety

Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.

Visual and audible alarm system:High/low temperature,Power failure,Abnormal voltage,Sensor error,Filter screen check,Low battery,Condenser clean,High ambient temperature,Door ajar alarm

Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

Keyboard lock, password protection to avoid set parameter randomly.

Special noise reduction design.



Humanized design

4 casters with stopper for easy moving and fixation.

Standard 25mm test hole for easy connecting to temperature monitoring systems.

3 adjustable shelves for easy storing.

Removable condenser dust gauze convenient for cleaning and maintenance.

Removable inner door for user to defrost and clean.

Standard USB port,USB port to read temperature and alarm conditions in recent 1 months.



Certificate:

ISO14001.ISO9001.ISO13485.ISO45001

Warranty

1 year free spare parts and remote technical support.



Performance

Refrigeration System

Temperature   Range

-40~-86°C

Compressor/Brand

1/SECOP

Ambient   Temperature

+10~+32°C

Refrigerant

Mixed

Controller

Microprocessor

Cooling   Type

Direct   cooling

Display

Digital   Display

Defrost   Type

Manual

Electrical   Data

Dimensions

Power   Supply(V/Hz)

220/50~60;   115/60

Capacity

340L

Rated   Power(W)

810W

Interior   Size(W*D*H)

488*607*1140mm

Electrical   Current(A)

5

Exterior   Size(W*D*H)

875*980*1900mm

Power   Consumption

11.2   kWh/24h

Package   Size(W*D*H)

935*1070*2130mm

Power   failure backup system

72H

N.t./G.t.(approx)

222/283.5kg



Loading   Qty(20'/40'/40'H)

12/24/24

Alarm

Accessories

High/Low   Temperature

Y

chart   recorder

/

Sensor   Error

Y

Caster

4

Power   Failure

Y

USB   port

Y

Door   ajar

Y

Inner   Door/shelf

2/3

High   Ambient temp.

Y

Test   hole

1/25MM

Condenser   clean

Y

Remote   alarm port

Optional

Low   battery

Y

CO2   back up system

Optional

Filter   screen check

Y

LN2   back up system

Optional

Abnormal   voltage

Y

Cold   storage box loading QTY

19200
