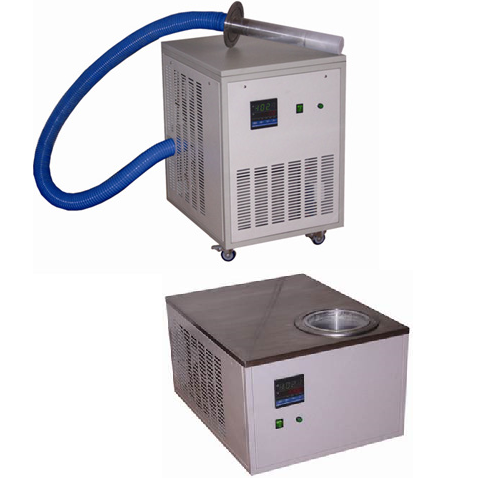

Cold Trap

Model ID: BMR-DF-CT1

Introduction:

This Series Cold Traps/Chillers are pint-size chillers that are suitable for Parylene vacuum film plating, chemical petroleum experiments, low-temperature liquid-bath, and medicinal desiccation, vapor-capturing and so on. We can also customize the size and refrigeration methods according to our clients' demands.



Technical Parameters:

Model No.

DM-95-15-G

Chiller Temperature

-95°C;-100°C;-120°C

Chiller Shape and Size

Hollowware Diameter: 190mm,   Depth:270mm

Exterior Dimensions(mm)H×W×D

420×560×710

Ambient temperatures

10--30°C

Cooling time

60minutes

Noise(db)

52

Voltage

220V,50~60HZ

Power

800W

Amp.

6A

Case Material

Cold-roll Steel Sheets

Chiller/Cold trap Material

Stainless Steel

Compressor

DANFOSS

Condenser Fan

Germany EBM  32W

Refrigerant (High Stage)

R404A

Refrigerant (Low Stage)

TH100

Temperature Controller

Japan RKC CD901

Sensor

PT100

Pressure Relay

DANFOSS KP5

Oil Eliminator

TAIWAN GUANYA

Weight

90KG



Price List:

Model

Temperature   Range

Chamber   Size (L)

Type

BMR-DF-CT1-95-15-G

-95°C

8L

Used for   Parylene

BMR-DF-CT1-100-15-B

-100°C

8L

Used for   Parylene

BMR-DF-CT1-120-15-B

-120°C

8L

Used for   Parylene
