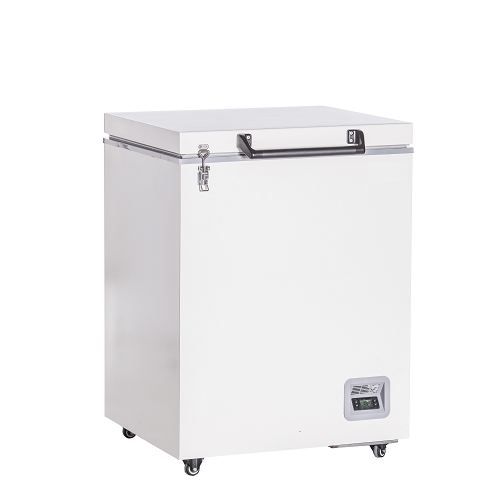

Deep Freezer

Model ID: DMDF-40H105

Deep Freezer are designed to store samples products.



Wide temperature range :10~32ambient temperature can reach -10-40

Accurate Temperature control technology to make the temperature maintain-10-40and accuracy 0.1 °C.

SPCC sprayed steel external material and inner chamber for friendly using and easy cleaning.

High-density polyurethane foam



Safety

Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.

Visual and audible alarm system: High/low temperature, Sensor error, Thermostat failure alarm, power failure alarm

Power failure protection: turn on delay of the cooling system when power failure, restart delay protection.

Keyboard lock, password protection to avoid set parameter randomly.

Wide available voltage range: 198V~242V.



Humanized design

4 casters,2 casters with stopper for easy moving and fixation.

1 Standard test hole(25mm), convenient for temperature monitoring.



Certificate:

ISO14001.ISO9001.ISO13485.ISO45001

FDA List and CE



Warranty

1 year free spare parts and remote technical support.



Special

4 visual and audible alarms.

1 Standard test hole(25mm)



Performance

Refrigeration System

Temperature   Range

-10~-40°C

Compressor/Brand

1/CUBIGEL

Ambient   Temperature

+10~+32°C

Refrigerant

R290

Controller

Microprocessor

Cooling   Type

Direct   cooling

Display

Digital   Display

Defrost   Type

Manual

Electrical Data

Dimensions

Power   Supply(V/Hz)

220~240V/50~60;115/60

Capacity

105L

Rated   Power(W)

160

Interior   Size(W*D*H)

480*380*665mm

Electrical   Current(A)

1.15

Exterior   Size(W*D*H)

685*645*930mm

Power   Consumption

1.65   kWh/24h

Package   Size(W*D*H)

750*700*1040mm



N.t./G.t.(approx)

52/64.5kg



Loading   Qty(20'/40'/40'H)

24/51/51

Alarm

Accessories

High/Low   Temperature

Y

Caster

4

Sensor   Error

Y

Remote   alarm port

/

Power   Failure

Y

Test   hole

1/25MM

Door   ajar

N

Material

Ambient   temp.

/

Inside   material

Stainless   steel

Power   failure backup system(alarm)

12H

Outside   material

Color   sprayed steel



Insulation

PURF
