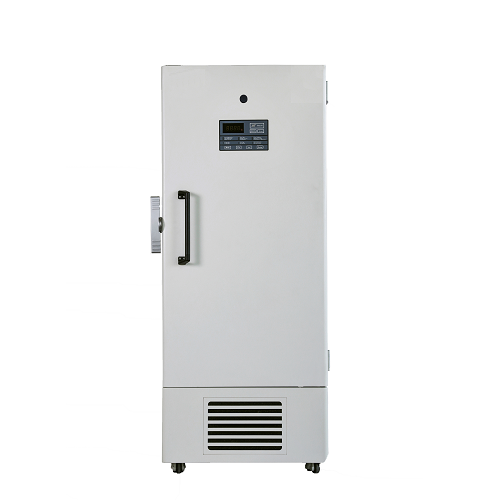

Ultra Low Temperature Freezer are specially designed to store samples products
Features
l Ambient temperature :10℃~32℃.
l Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1℃.
l Independent research and development of mixed refrigerant can make device save energy 50%.
l Better uniformity, uniformity is increased 30%.
l The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.
l 304 stainless steel inner chamber for friendly using and easy cleaning.
l VIPⅡPLUS technology, special narrow design for entering elevators.
Safety
l Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
l Visual and audible alarm system:High/low temperature,Power failure,Abnormal voltage,Sensor error,Filter screen check,Low battery,Condenser clean,High ambient temperature,Door ajar alarm
l Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
l Keyboard lock, password protection to avoid set parameter randomly.
l Special noise reduction design.
Humanized design
l 4 casters with stopper for easy moving and fixation.
l Standard 25mm test hole for easy connecting to temperature monitoring systems.
l 3 adjustable shelves for easy storing.
l Removable condenser dust gauze convenient for cleaning and maintenance.
l Removable inner door for user to defrost and clean.
l Standard USB port,USB port to read temperature and alarm conditions in recent 1 months.
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001.CE.
Warranty：
l 1 year free spare parts and remote technical support.
Special：
Patented technology, mixed refrigerant.
Save energy up to 50%.
Wide voltage design: 187V~242V available.
Build-in back-up battery: 72 hours power failure alarm.
9 visual and audible alarms.
Performance | Refrigeration System | ||
Temperature Range | -40~-86°C | Compressor/Brand | 2/SECOP |
Ambient Temperature | +10~+32°C | Refrigerant | Mixed |
Controller | Microprocessor | Cooling Type | Direct cooling |
Display | Digital Display | Defrost Type | Manual |
Electrical Data | Dimensions | ||
Power Supply(V/Hz) | 220/50~60; 115/60 | Capacity | 588L |
Rated Power(W) | 1500 | Interior Size(W*D*H) | 606*738*1310mm |
Electrical Current(A) | 9.1 | Exterior Size(W*D*H) | 880*1090*1995mm |
Power Consumption | 16.5kWh/24h | Package Size(W*D*H) | 970*1140*2190mm |
Power failure backup system | 72H | N.t./G.t.(approx) | 290/360kg |
Loading Qty(20'/40'/40'H) | 12/24/24 | ||
Alarm | Accessories | ||
High/Low Temperature | Y | Data Logger | Optional |
Sensor Error | Y | Caster | 4 |
Power Failure | Y | USB port | Y |
Door ajar | Y | Remote alarm port | Y |
High Ambient temp. | Y | RS232/485 port | Y |
Condenser clean | Y | Inner Door/shelf | 2/3 |
Low battery | Y | Test hole | 1/25MM |
Filter screen check | Y | CO2/LN2 back up system | Optional |
Abnormal voltage | Y | Cold storage box loading QTY | 40000 |
