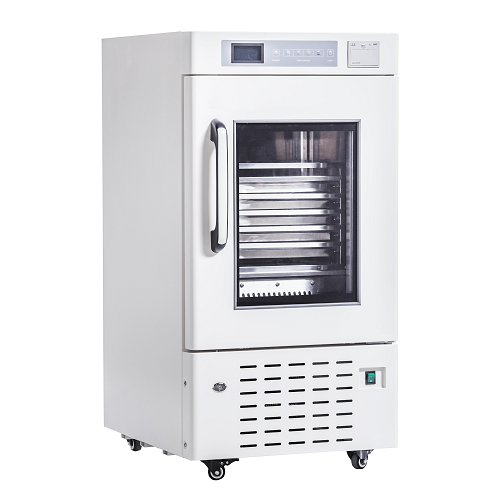

Platelet Incubator

Model ID: DMDC-5

Platelet thermostatic storage cabinet is used for short-term platelet preservation (20~24), and also for chemical reagents (2~40) with slow response at constant temperature



Features

l  Wide temperature range :10~32ambient temperature can reach 20~24/2~40.

l  Accurate Temperature control technology to make the temperature maintain 20~-24/2~40and adjustment accuracy 0.1 °C.

l  The range of fluctuations can be controlled in ±1. According to the ring temperature and inner cabinet temperature, intelligent control refrigeration and heating.

l  304 stainless steel inner chamber for friendly using and easy cleaning.

l  Double transparent insulation glass door, filled with inert gas ensure the cooling performance.



 Safety

l  Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.

l  Visual and audible alarm system: High/low temperature, Thermostat failure alarm, Low battery alarm, Power failure alarm, Door ajar alarm.

l  Power failure protection: turn on delay of the cooling system when power failure, restart delay protection.

l  Keyboard lock, password protection to avoid set parameter randomly.

l  Disinfection with UV, can set disinfection time freely, the UV light would off while door open to protect  human body.



 Humanized design

l  4 casters with stopper for easy moving and fixation.

l  Power switch button on the back, more convenient for operation.

l  Japan imports oscillating slide for long service life and low sound

l  Temperature printer can be set according to customer needs, monitoring equipment temperature change at any time

l  Embedded handle, Easy to open



Certificate:

l  ISO14001.ISO9001.ISO13485.ISO45001; FDA

Warranty

l  1 year free spare parts and remote technical support.



special

      Wide voltage design: 198V~242V available.

      Build-in back-up battery: 72 hours power failure alarm.

      Large digital display for easy of observation

      5 visual and audible alarms.



Performance


Refrigeration System

Temperature Range

20~24/2~24°C

Compressor/Brand

1/EMBRACO

Ambient Temperature

+10~+32°C

Refrigerant

R134a

Controller

Microprocessor

Cooling Type

Air-cooling

Display

Digital Display

Defrost Type

No-frost design




Electrical Data


 Accessories

Power Supply(V/Hz)

220/50~60; 115/60

Caster

4

Rated Power(W)

197

 Test hole

Optional

Electrical Current(A)

0.9

Drawer

5

Power Consumption

2.69 kWh/24h

Temperature recorder

Optional




Dimensions


Alarm

Capacity

10 Bags/450ML

High/Low Temperature

Y

Interior Size(W*D*H)

427*360*467mm

Door ajar

Y

Exterior Size(W*D*H)

520*640*1030mm

Power failure

Y

Package Size(W*D*H)

590*695*1210mm

 Thermostat   failure

Y

N.t./G.t.(approx)

65/87kg

Low battery

/

Loading Qty(20'/40'/40'H)

24/48/96

Abnormal voltage

/
