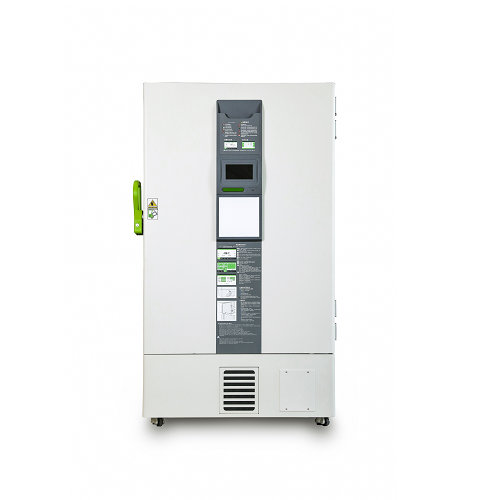

Ultra Low Temperature Freezer are specially designed to store samples products.
Features
l Two-compressor cascade refrigeration system specially designed for cryogenic applications.
l Wide available voltage range: 187V~242V.
l Ambient temperature :10℃~32℃.
l Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1℃.
l Removable heat exchanger, almost all of the relevant components of the cooling system could be maintained and replaced.
l Realize historical temperature curve query and download
l Independent switch, standard USB port, easy to download data
l HC refrigeration system, energy saving 50%
l VIP II PLUS technology, special narrow design for entering elevators.
Safety
l Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
l Visual and audible alarm system: High/low temperature,Power failure,Abnormal voltage,Sensor error,Filter screen check,Low battery,Condenser clean,High ambient temperature,Door ajar alarm
l Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
l Keyboard lock, password protection to avoid set parameter randomly.
l Special noise reduction design.
Humanized design
l 4 casters with stopper for easy moving and fixation.
l standard 25mm test hole for easy connecting to temperature monitoring systems.
l 3 adjustable shelves for easy storing.
l Visual and audible alarm and all alarm can be through reserved for remote alarm port remote alarm
l Removable condenser front cover convenient for cleaning and maintenance.
l With the function of hand-written artboard, convenient for customers to record temporary information.
l With A4 paper slot function, convenient for customer management and equipment related information
l
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001
Warranty：
l 1 year free spare parts and remote technical support.
special：
Patented technology, HC refrigerant.
Standard remote alarm port
10 visual and audible alarms.
Performance | Refrigeration System | ||||
Temperature Range | -40~-86°C | Compressor/Brand | 2/SECOP | ||
Ambient Temperature | +10~+32°C | Refrigerant | HC | ||
Controller | Microprocessor | Cooling Type | Direct cooling | ||
Display | Digital Display | Defrost Type | Manual | ||
Electrical Data | Dimensions | ||||
Power Supply(V/Hz) | 220~240V/50~60;115/60 | Capacity | 728L | ||
Rated Power(W) | 935 | Interior Size(W*D*H) | 963*558*1350mm | ||
Electrical Current(A) | 7 | Exterior Size(W*D*H) | 1260*890*2010mm | ||
Power Consumption | 15.4kWh/24h | Package Size(W*D*H) | 1320*970*2190mm | ||
Power failure alarm | 72H | N.t./G.t.(approx) | 360/401.5kg | ||
Loading Qty(20'/40'/40'H) | 8/18/18 | ||||
Alarm | Accessories | |||
High/Low Temperature | Y | Caster | 4 | |
Sensor Error | Y | Remote alarm port | Y | |
Power Failure | Y | Inner Door | 2(stainless steel) | |
Door ajar | Y | Shelf | 3(stainless steel) | |
Ambient temp. | Y | Test hole | 1/25MM | |
Condenser clean | Y | Chart recorder | Optional | |
Low battery | Y | CO2 back up system | Optional | |
Filter screen check | Y | LN2 back up system | Optional | |
Abnormal voltage | Y | Cold storage box loading QTY | 504 | |
Thermostat failure | Y | MRNA vaccine can be stored | 50400pcs | |
