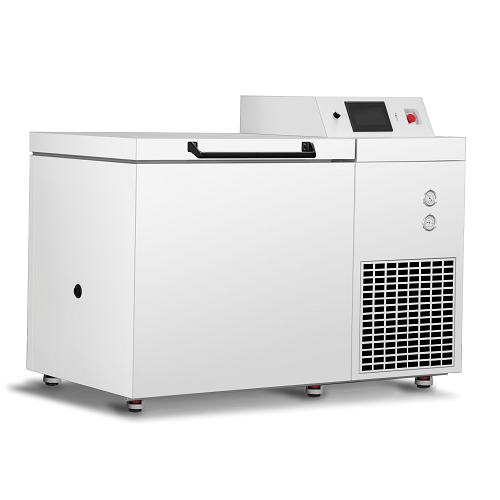

-150℃ Cryogenic Freezer

This product is specially designed and manufactured for long term storage of various biological product, including viruses, germs. erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, epidemic prevention services, and research institutes, laboratories in electronic and chemical plants. bio-logical engineering institutes and marine fishery companies

SAFETY

Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter，and condenser clean, abnormal voltage, low battery thermostat failure

Capable of producing two types of alarm outputs, audible buzzer and visible flashing light

Door open feature standard and USB port for temperature date downloading standard on upright models

Remote alarm contacts

INSTALLATION AND APPLICATION

380v /50HZ electrical design, stable power supply, rapid cooling, rapid cooling in 6 hours

Suitable for 10℃to 30℃ ambient temperature

FILED PROVEN RELIABILITY

7 inches touch screen to display current temp. history temp, all alarm records and data

Standard with USB port to download alarm and temp data

Non-flammable HC refrigerant to guarantee users safe

Emergency stop to protect operator

KEY DESIGN FEATURES

Microprocessor-controlled system designed for controlled rage of-40℃ to-150℃or cabinet space with 1℃ increment

Settable high temperature and low temperature alarms

Optional temperature recorder, storage racks and storage box

ENERGY SAVING

Unique door seal design for the minimum loss of cold temperature during a door opening

200 mm thickness without CFC insulation to minimize cabinet heat gain and to improve temperature stability

Technical Parameters

Ambient Temperature (℃): 10~32℃

Temperature Range (℃): -40℃～-150℃

Sensor: PT100

Voltage/frequency(V/Hz): 380V/50Hz

Inside material: Stainless steel

Capacity (L/cu.ft): 128L

Exterior size (W*D*H) (mm): 1555*956*1047

20GP/40GP/40HQ: 6/14/14

USB: Yes

Certification: CE

LCD Touch Screen: Yes
