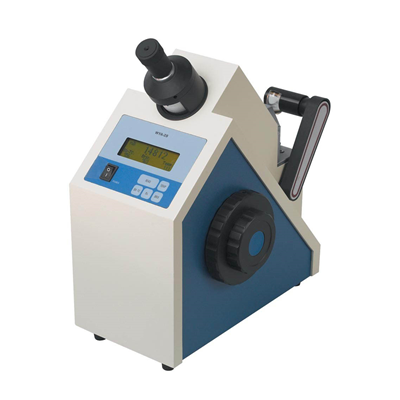

Abbe Refractometer

Characteristic:

The refractive index nD which determine the liquid and solid and mass percent Brix of dry solid in sugar water solution, adopt visual sight, back light LCD display. Determining Brix then could amend the temperature. Prism adopt hard glass, excellent corrosion resistance and scratch resistance. The sample needed is very little, could meet the measurement of precious sample. Equipped with the newest temperature sensor with high accuracy, make the temperature measurement more accurate, could equip with tiny constant temperature water bath slot, meeting with the measurement under different temperature.

Main technical parameter:

Refractive index measurement range(nD):1.3000-1.7000

Temperature display range: 0-50°C

Measurement indicating value error(nD):  ±0.0002

Output mode: RS232

Measurement resolution(nD): 0.0001

Power supply: AC220V-240V frequency 50HZ± 1HZ

Cane sugar solution mass fraction (Brix) reading range: 0-100%

Instrument dimension: 330*180*380mm

Measurement indicating value error (Brix):± 0.1%

Instrument weight: 10Kg

Measurement resolution (Brix): 0.1%:
