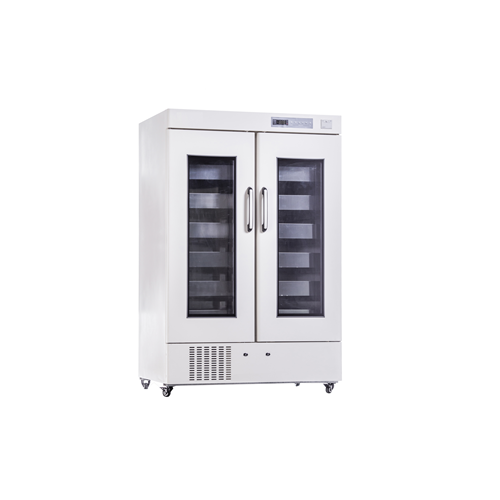

Blood Bank Refrigerator

Model ID: DMBC-4V1008

Blood bank refrigerator are specially designed to store blood bags and blood-derived products.



Feature:

Ø  Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C.

Ø  Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity.

Ø  Three layer toughened glass door with heater to avoid condensation.

Ø  304 stainless steel inner chamber for friendly using and easy cleaning.

Ø  Wide available voltage range: 187V~242V



Safety:

Ø  Safety door lock and controller setting password to prevent unauthorized access.

Ø  Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.

Ø  Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening.

Ø  Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.

Ø  Power failure protection: turn on delay of the cooling system after power failure.

Ø  Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.

Ø  Temperature printer: print current inside temperature automatically per 10 minutes.



Humanized design:

Ø  4 casters with stopper for easy moving and fixation.

Ø  12 stainless steel drawers for easy using.

Ø  Special designed service-free drainage system ensure no water in the cabinet.

Ø  Standard 25mm test hole for easy connecting to temperature monitoring systems.

Ø  Automatic on/off LED light with manual switch on control panel.



Certificate:

l  ISO14001.ISO9001.ISO13485.ISO45001;

Warranty

l  1 year free spare parts and remote technical support.



Special

       Reliable control system: ±1.5°C

       Forced-air cooling system, frost-free

       Glass door with heater, condensation-free

       12 stainless steel drawers for easy using.

       5 visual and audible alarms



Performance


Refrigeration   System

Temperature Range

4°C±1°C

Compressor

1

Ambient Temperature

10~32°C

Refrigerant

R134a

Controller

Microprocessor

Cooling Type

Forced-air cooling

Display

Digital Display

Defrost Type

Frost free




Electrical Data


Alarm

Power Supply(V/Hz)

220/50~60; 115/60

High/Low Temperature

Y

Rated Power(W)

513

Sensor Error

Y

Electrical Current(A)

2.74

Power Failure

Y

Power Consumption

 8.53 kWh/24h

Door ajar

Y




Dimensions


Accessories

Capacity

1008L

Caster

4

Interior Size(W*D*H)

1100*684*1325mm

Lamp

LED

Exterior Size(W*D*H)

1240*860*1895mm

Drawer

12

Package Size(W*D*H)

1300*960*2130mm

Test hole

1/25mm

N.t./G.t.(approx)

265/335kg

Temperature printer

1

Loading Qty(20'/40'/40'H)

8/16/16

Chart recorder

Optional
