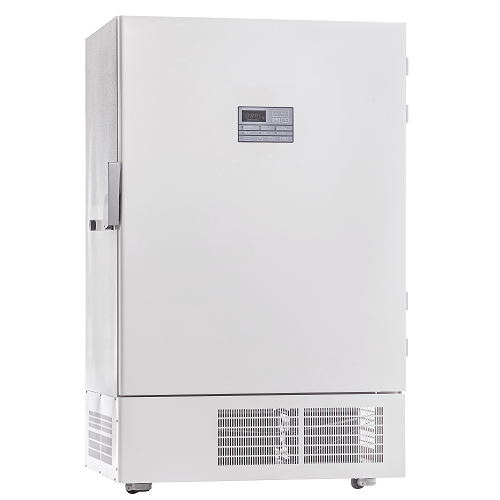

The -40℃ deep freezer offers a large capacity storage space .
Integrated design of cold shelf and evaporator provides additional refrigeration efficiency.
This products designed to store vaccines blood plasma, and many other biological materials, Installations can be found in researching institution and clinical sites in life science, electronic testing and medical markets.
Features
l Chemically stable, CFC-free, commercially available and environmentally, safe refrigerant.
l High density foam insulation for rigidity and stable storage temperature. Microprocessor control, digital display adjustable temperature range: -10℃--40℃.
l LED digital display for clear observation.
l Wide voltage tolerance design with applicable voltage range of187~242 V/AC.
Safety
l Multiple malfunction alarms including high and low temperature, sensor error
l Two types of alarm indications: audible buzzing and visible flashing light.
l Door lock for storage safety
Humanized design
l Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.
l Lockable caster design for customer to move as needed.
l Controller password protect function to avoid change running parameter randomly.
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001.
Warranty：
l 1 year free spare parts and remote technical support.
Special：
Environmentally friendly refrigerant
Easy-to-clean sprayed steel plate material; Not easy to adhere to dust
Performance | Refrigeration System | ||||
Temperature Range | -10℃~-40°C | Compressor/Brand | SECOP/2 | ||
Ambient Temperature | +10~+32°C | Refrigerant | R404A | ||
Controller | Microprocessor | Cooling Type | Direct cooling | ||
Display | Digital Display | Defrost Type | Manual | ||
Electrical Data | Dimensions | ||||
Power Supply(V/Hz) | 220~240V/50~60;115/60 | Capacity | 936L | ||
Rated Power(W) | 1000W | Interior Size(W*D*H) | 1000*700*1335mm | ||
Electrical Current(A) | 5.8 | Exterior Size(W*D*H) | 1320*980*2100mm | ||
Power Consumption | 14 kWh/24h | Package Size(W*D*H) | 1360*1135*2170mm | ||
Power failure alarm | 72 H | N.t./G.t.(approx) | 372/416 kg | ||
Loading Qty(20'/40'/40'H) | 8/16/16 | ||||
Alarm | Accessories | |||
High/Low Temperature | Y | Caster | 4 | |
Sensor Error | Y | Remote alarm port | Y | |
Power Failure | Y | Inner Door | 4 | |
Door ajar | Y | Shelf | 3 | |
Thermostat failure | Y | Test hole | 1/25MM | |
Condenser clean | Y | Data logger | Optional | |
