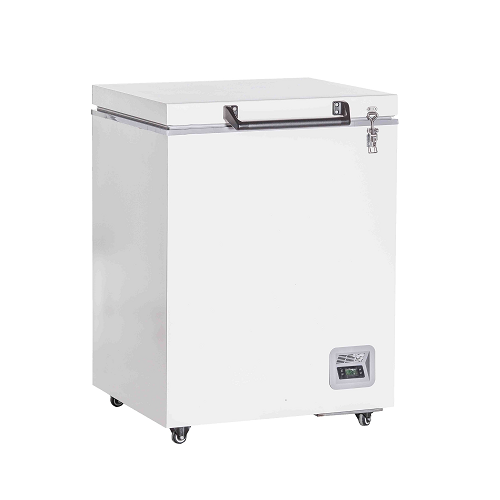

Ultra Low Temperature Freezer are specially designed to store samples products.
BOX
l The box is made of high quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process with elegant orange powder coating. High-class 304 SUS inner box, durable and reliable.
Temperature control mode
l With the international famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -40℃~-86℃
l High light digital display
l High/low temperature alarm, the alarm temperature can be set as needed
l Platinum resistance temperature sensor, sensing temperature accurately
Features
l Safety door lock design to prevent abnormal door open
l Wide voltage for AC187V-AC242V
l Mute design for salient needed environment
l Digital display with big screen, easy to check
l Excellent thermal insulation performance with silicone door seal design (second door seal optional)
l Mobile and fixable wheel for move
Security guarantee
l Temperature high/low alarm, sensor malfunction alarm
l Audible and visible alarm
l Keyboard lockable, password protection to prevent change running parameter randomly
l Display running parameter with real-time monitoring to guarantee the stability of freezer
Refrigeration system
l Imported brand compressor work with Mixed refrigerant
l High density insulation foam layer with better heat preservation effect
l Optimized self-cascade refrigeration system to provide faster cooling speed with lower power consumption
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001
Warranty：
1 year free spare parts and remote technical support.
Performance | Refrigeration System | ||||
Temperature Range | -40~-86°C | Compressor/Brand | 1/CUBIGEL | ||
Ambient Temperature | +10~+32°C | Refrigerant | Mixed | ||
Controller | Microprocessor | Cooling Type | Direct cooling | ||
Display | Digital Display | Defrost Type | Manual | ||
Electrical Data | Dimensions | ||||
Power Supply(V/Hz) | 220~240V/50~60;115/60 | Capacity | 105L | ||
Rated Power(W) | 500 | Interior Size(W*D*H) | 480*380*665mm | ||
Electrical Current(A) | 2.9 | Exterior Size(W*D*H) | 680*580*935mm | ||
Power Consumption | 3.8 kWh/24h | Package Size(W*D*H) | 770*705*1090mm | ||
Power failure alarm | 12H | N.t./G.t.(approx) | 63.7/68.5kg | ||
Loading Qty(20'/40'/40'H) | 24/51/51 | ||||
Alarm | Accessories | |||
High/Low Temperature | Y | Caster | 4 | |
Sensor Error | y | Remote alarm port | / | |
Power Failure | / | Inner Door | / | |
Door ajar | / | Shelf | / | |
Ambient temp. | / | Test hole | 1/25MM | |
Condenser clean | / | Data logger | Optional | |
Low battery | / | CO2 back up system | / | |
Filter screen check | / | LN2 back up system | / | |
Abnormal voltage | / | Cold storage box loading QTY | 34 | |
Thermostat failure | Y | MRNA vaccine can be stored | 3400pcs | |
