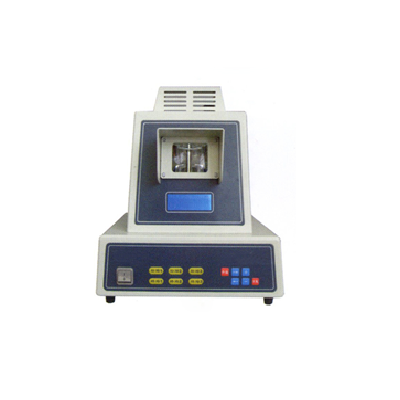

Smelting Point Instrument

Model ID: AP- WRR

Smelting point instrument series are mainly used in determination of melting point of crystal organic compounds, such as medicine, dye, spice, etc, so as to confirm the purity. There are two measuring methods, photo electricity automatic detection and visual observation. Measure or observe the melting process in the condition of heating rate, confirm its smelting point.



Characteristic:

To confirm the purity by determine the melting point of crystalloid. It is mainly used in determination of melting point of crystal organic compounds, such as medicine, dye, spice, etc. Measuring method is completely in conformity with pharmacopoeia criterion. Could test 3 pieces of samples at the same time, automatically calculate the average value of incipient melting, final melting. Use LED as lighting source, durable and be clear at a glance.



Main technical parameter:

Melting point measurement range: 40-280°C

Temperature display minimum indicating value: 0.1°C

Linear heating rate: 0.5°C/min, 1°C/min, 1.5°C/min,3°C/min

Measurement accuracy200°C: ±0.5°C, ≥200°C: ±0.8°C

Repeatability(maximum deviation): 0.3°C

Instrument weight: 11Kg

Instrument dimension: 320*300*380mm

With RS232 interface

Designed according to melting point detection method stated by pharmacopeia, could test sample in darker color
