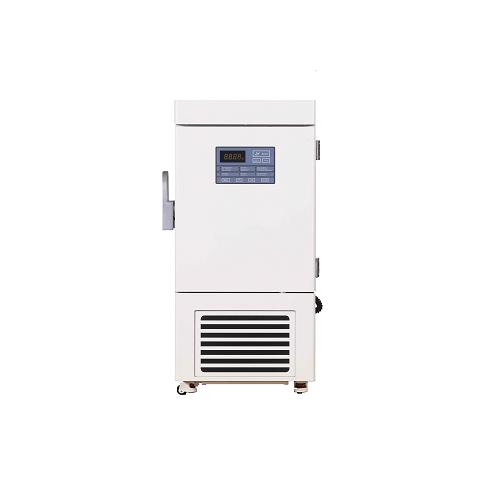

Ultra Low Temperature Freezer are specially designed to store samples products.
Features
l Ambient temperature range :10℃~32℃.
l Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1 °C.
l The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.
l SPCC sprayed steel external material and 304 stainless steel inner chamber for friendly using and easy cleaning.
Safety
l Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
l Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm,door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm
l Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
l Keyboard lock, password protection to avoid set parameter randomly.
l Wide available voltage range: 187V~242V.
Humanized design
l 4 casters with stopper for easy moving and fixation.
l 1 adjustable shelves for easy storing.
l Removable condenser dust gauze convenient for cleaning and maintenance.
l Removable inner door for user to defrost and clean.
l Standard Independent Power Switch.
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001
Warranty：
l 1 year free spare parts and remote technical support.
special：
Patented technology, mixed refrigerant.
Standard remote alarm port
Cold storage box loading QTY:2400
MRNA vaccine can be stored:2400pcs
10 visual and audible alarms.
Performance | Refrigeration System | ||||
Temperature Range | -40~-86°C | Compressor/Brand | 1/SECOP | ||
Ambient Temperature | +10~+32°C | Refrigerant | Mixed | ||
Controller | Microprocessor | Cooling Type | Direct cooling | ||
Display | Digital Display | Defrost Type | Manual | ||
Electrical Data | Dimensions | ||||
Power Supply(V/Hz) | 220~240V/50~60;115/60 | Capacity | 58L | ||
Rated Power(W) | 442 | Interior Size(W*D*H) | 330*453*410mm | ||
Electrical Current(A) | 2.67 | Exterior Size(W*D*H) | 635*757*1212mm | ||
Power Consumption | 5.6 kWh/24h | Package Size(W*D*H) | 730*845*1400mm | ||
Power failure alarm | 72H | N.t./G.t.(approx) | 115/155kg | ||
Loading Qty(20'/40'/40'H) | 21/43/43 | ||||
Alarm | Accessories | |||
High/Low Temperature | Y | Caster | 4 | |
Sensor Error | Y | Remote alarm port | Y | |
Power Failure | Y | Inner Door | 1(stainless steel) | |
Door ajar | Y | Shelf | 1(stainless steel) | |
Ambient temp. | Y | Test hole | 1/25MM | |
Condenser clean | Y | Data looger | Optional | |
Low battery | Y | CO2 back up system | Optional | |
Filter screen check | Y | LN2 back up system | Optional | |
Abnormal voltage | Y | Cold storage box loading QTY | 2400 | |
Thermostat failure | Y | MRNA vaccine can be stored | 2400pcs | |
