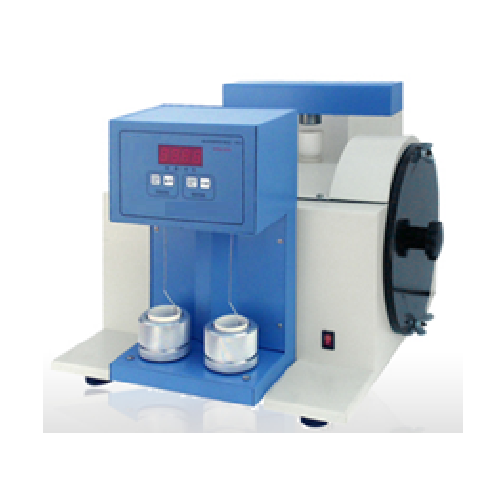

Automatic Caking Index Tester

Features

It is suitable for the determination of Roga index and caking index of coal used in coal, metallurgy, coking and laboratory coking. The instrument is another new instrument newly developed by our company. It can make three kinds of experimental results respectively: mixing, static pressure and drum. The experimental steps are fully automatic controlled. Users can carry out any kind of experiment just by lightly pressing the button.

Technical parameters
Drum Revolution: 50 ± 2R / min.

Revolution range: 250 revolutions.

Number of samples: 2.

Crucible inclination: 45 °.

Rotating speed of mixing rod: 150r / min

Crucible speed: 15R / min.

45 ° mixing time: 1 minute and 45 seconds.

45 ° to vertical time: 15 seconds

Display mode: digital display.

Power: 54W

Power supply voltage: 220V 50Hz

Dimensions: (length * width* height) 400 * 455 * 340mm
